Telescopic steel props

A wide variety of light duty steel props. Highlights: easy striking system, full protection for workers' hands and self-cleaning thread.
A wide variety of light duty steel props. Highlights: easy striking system, full protection for workers' hands and self-cleaning thread.

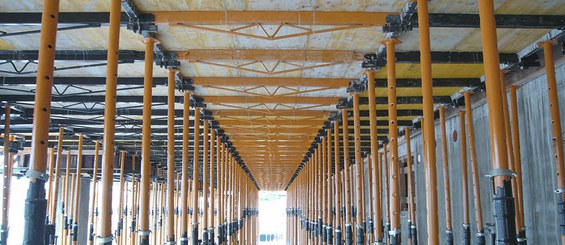

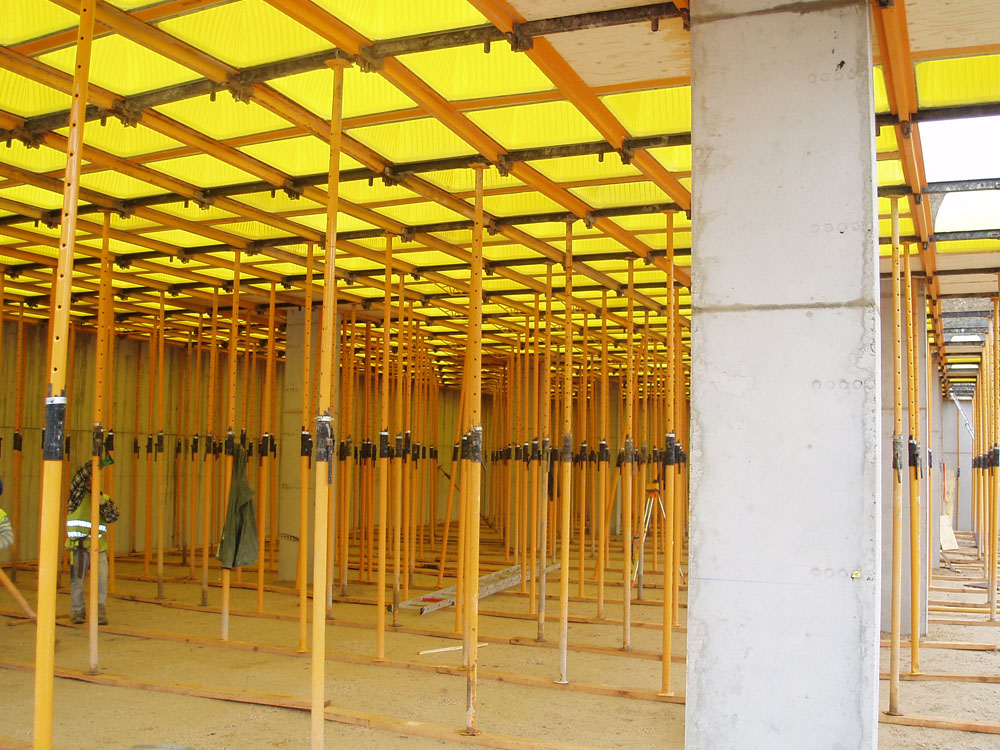

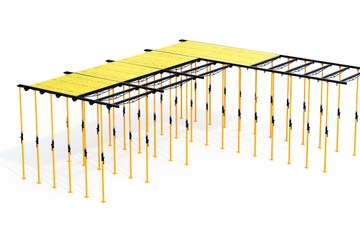

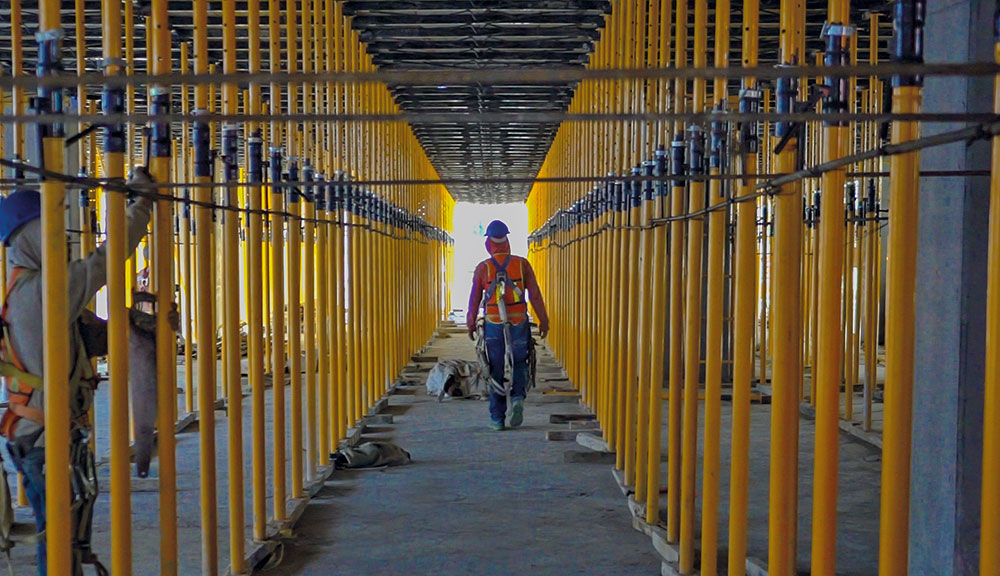

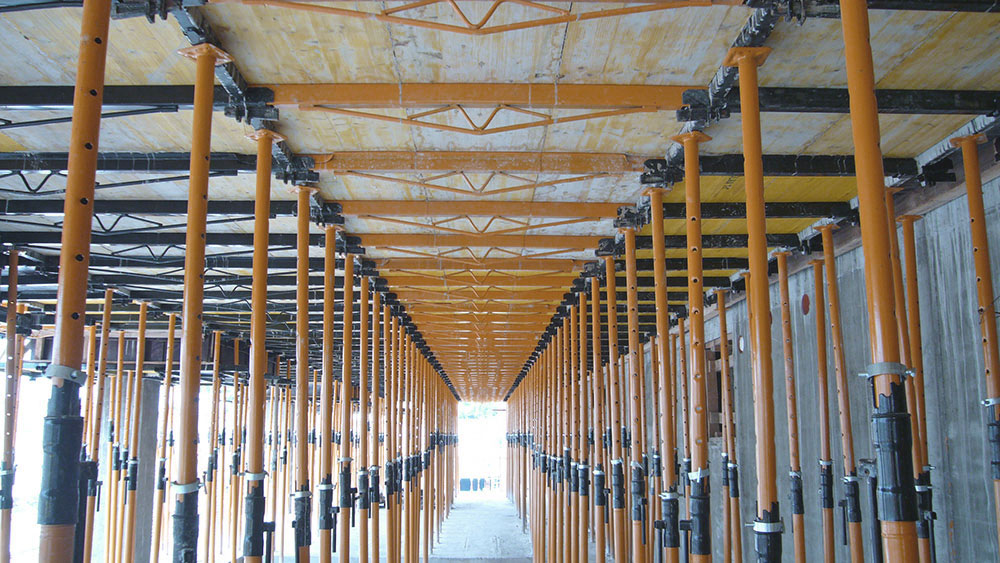

Telescopic steel props are used for the shoring of slab formwork and for various other site needs. These are high performance cost-effective props.

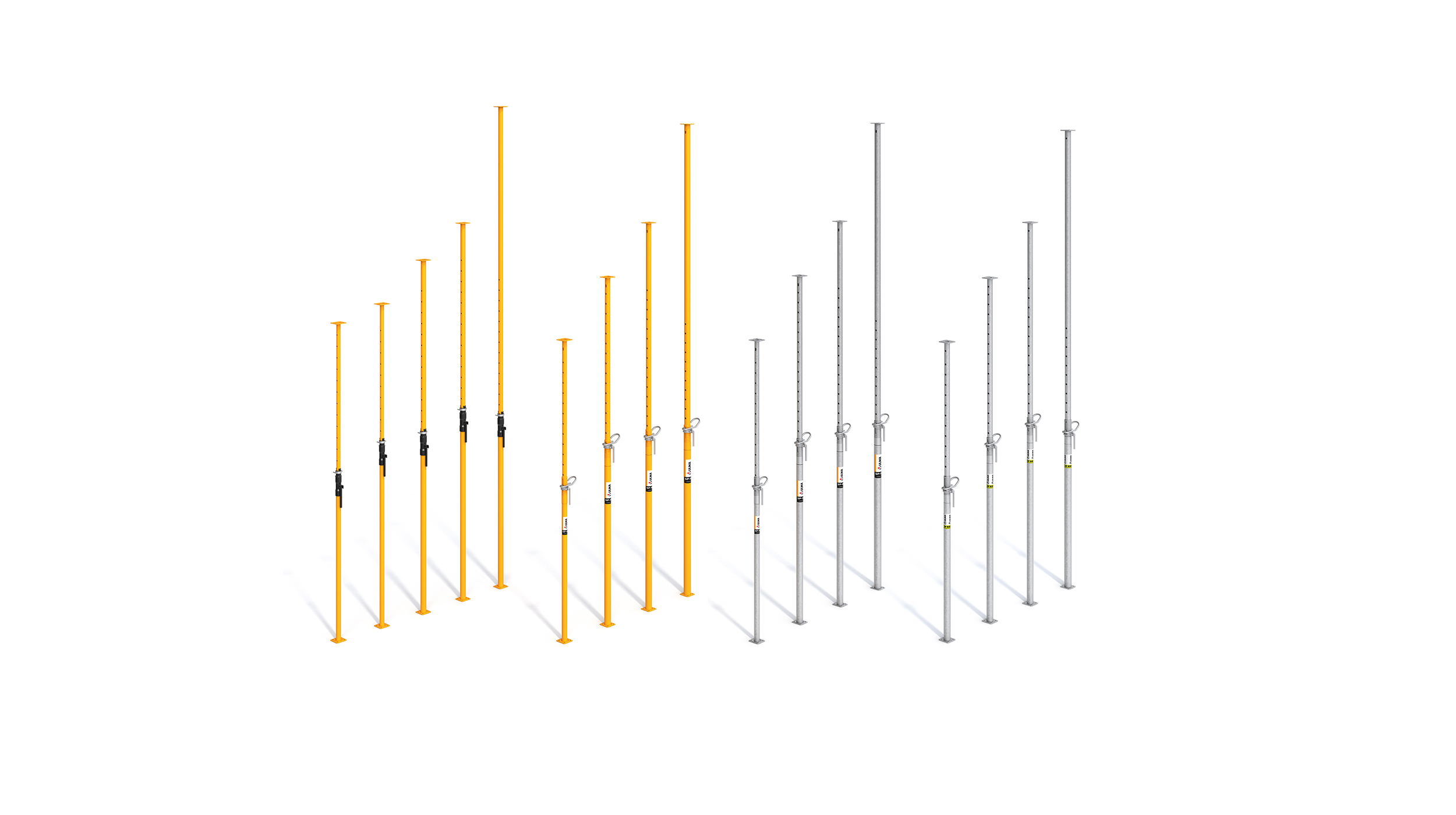

There are different types of props:

  • SP B Prop:
    • Maximum working load: 36,1 kN
    • Length: 1.75 m – 5 m
    • Galvanized prop, its regulation and fixing design provides quick prop adjustment.
  • SP Prop:
    • Maximum working load: 30 kN
    • Length: 1.75 m – 5 m
    • Its regulation and fixing design provides quick prop adjustment.
    • Props can be hot-dip galvanized or coated with polyester resins.
  • Normal Prop:
    • Maximum working load: 23 kN
    • Length: 1.75 m – 3.5 m
    • Coated with polyester resins, this is designed to withstand the loads that are traditionally associated with building construction.
  • Strong Prop:
    • Maximum working load: 26 kN
    • Length: 2.1 m – 5.25 m
    • Shares the same design as the Normal Prop, although it is a stronger heavy duty shoring system.
  • ECO PROP:
    • Maximum working load: 20 kN
    • Length: 0.8 m – 1.7 m
    • The most economical version of Telescopic Props. It is characterized by its lightness and versatility.

SP B and SP Props:

  • Guaranteed high safety levels:
    • Hands anti-crush protection integrated.

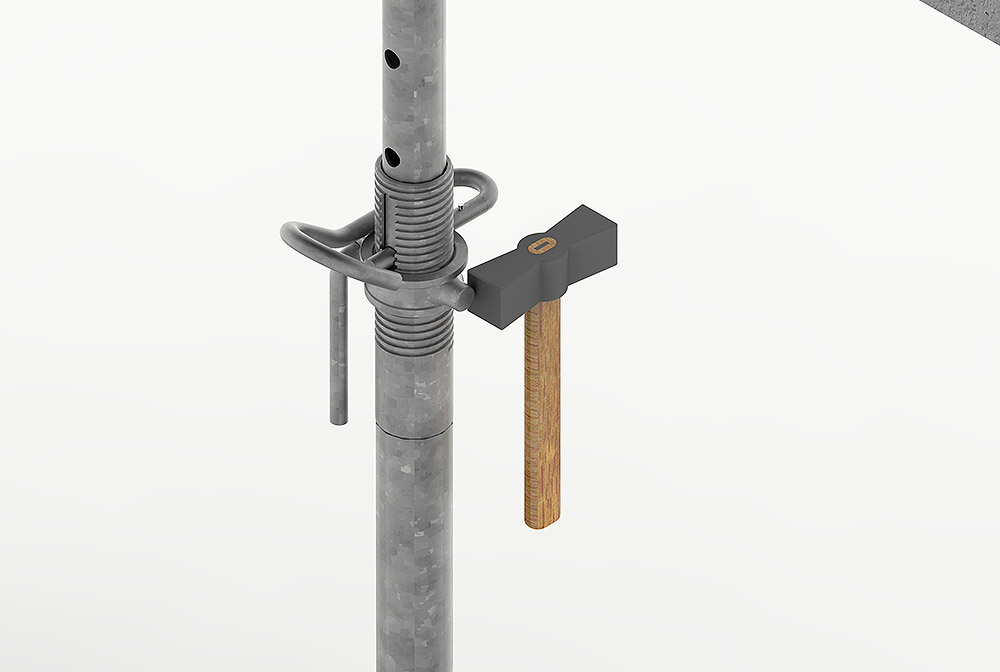

    • Simple and quick adjustment of the collar nut.
    • Prop components with unintentional disengagement system.
  • Cost-effective thanks to an optimized design.
  • High durability for multiple reuse.

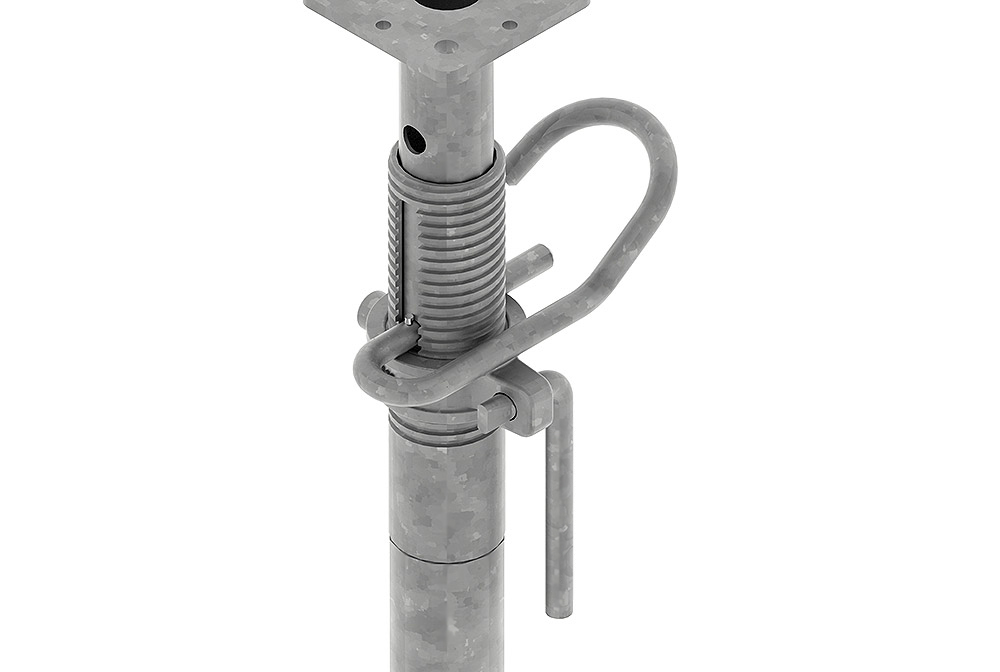

  • Simple and quick maintenance. The collar nut has a thread  designed to remove dirt and concrete remains.

NORMAL, STRONG and ECO Prop:

  • High assembly rates:
    • Its lightness allows high execution rates.
    • Quick and easy adjustment of the nut, thanks to the regulator that allows to position the cotter pin with a single movement.
  • Simple and quick maintenance. The collar nut has a thread designed to remove dirt and concrete remains.
