Modular Formwork VR Table

Hugely effective table form for regular geometry large floor slabs. Perfect for building construction. Highlights: Speeds up working pace, provides safety and excellent concrete finishes.
Hugely effective table form for regular geometry large floor slabs. Perfect for building construction.
Highlights: Speeds up working pace, provides safety and excellent concrete finishes.

Table formwork designed especially for large floor slabs with regular geometry. Composed of pre-assembled elements items that make up the table, it offers with outstanding pace of work, high safety levels and excellent concrete finishes.

Ultimately, it is a fast and safe secure formwork system that requires less labour and offers great performance, ideal for the construction of buildings: hotels, skyscrapers, shopping centres, hospitals, airports, etc.

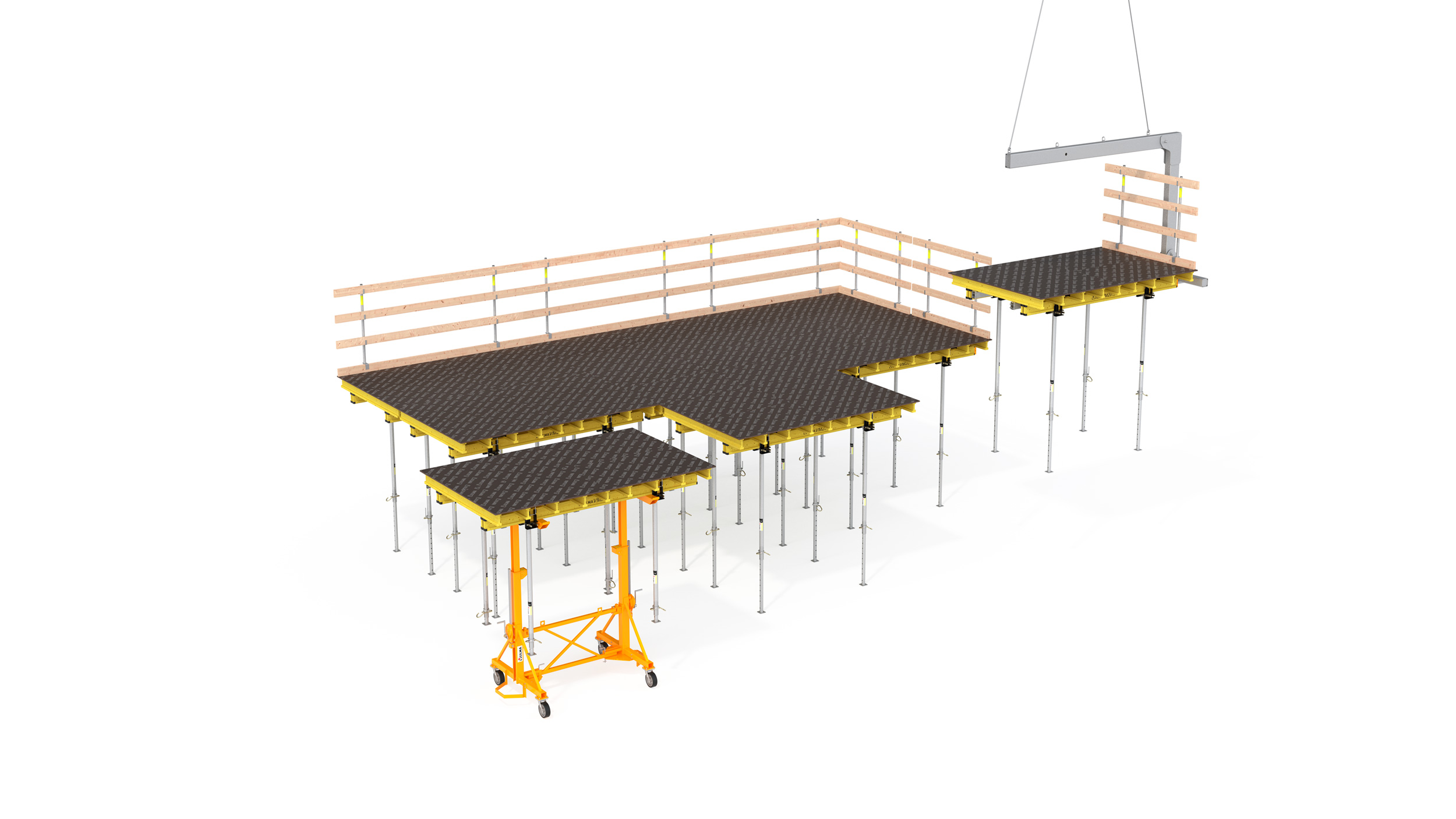

  • The tableforms consists of main timber or steel beams and secondary timber beams, decked with plywood and supported on props or shoring.
  • VR-M Table
    • Modular tableform up to 6 m.
    • VM 20 beams as main beam material eases the lifting and relocation of the tables due to its lightness.
  • VR-L Table
    • Modular tableform up to 12 m.
    • MK waler as main beam material eases the design of solutions for high load capacity tables or drop beams.
  • Phenolic Plywood as form face
  • Head. Has a safe and simple rotating head system. A single worker can fold and unfold the prop
  • SP EP or ALUPROP prop or shoring system as support for the horizontal formwork.
  • Movable from one place to another without dismantling, minimising thus possible risks during assembly and dismantling
  • Quick formwork erection, stripping and material movement requires less labour: great efficiency
  • Without prop removal when stripping or transferring the tables
  • Easy installation to dimension and leveling of the tables (few props)
  • Flexible system:
    • Tables with pre-defined dimensions or special solutions, depending on requirements
    • Easy infillings (plywood rests on beams projecting from tables)
    • Construction of drop beams, column heads and other geometries in slabs
    • Easy and safe solution of cantilevers, due to the specific prop arrangement
    • Compatible with other formwork systems of ULMA Construction
  • Safe system:
    • Formwork erection (with plywood) and handrails on the ground, except for infilling works at height
    • Handrails attached to perimeter tables during the entire building process
    • Elements remain fixed from beginning to end. Impossibility of falls from height
