Recoverable Modular Formwork RAPID

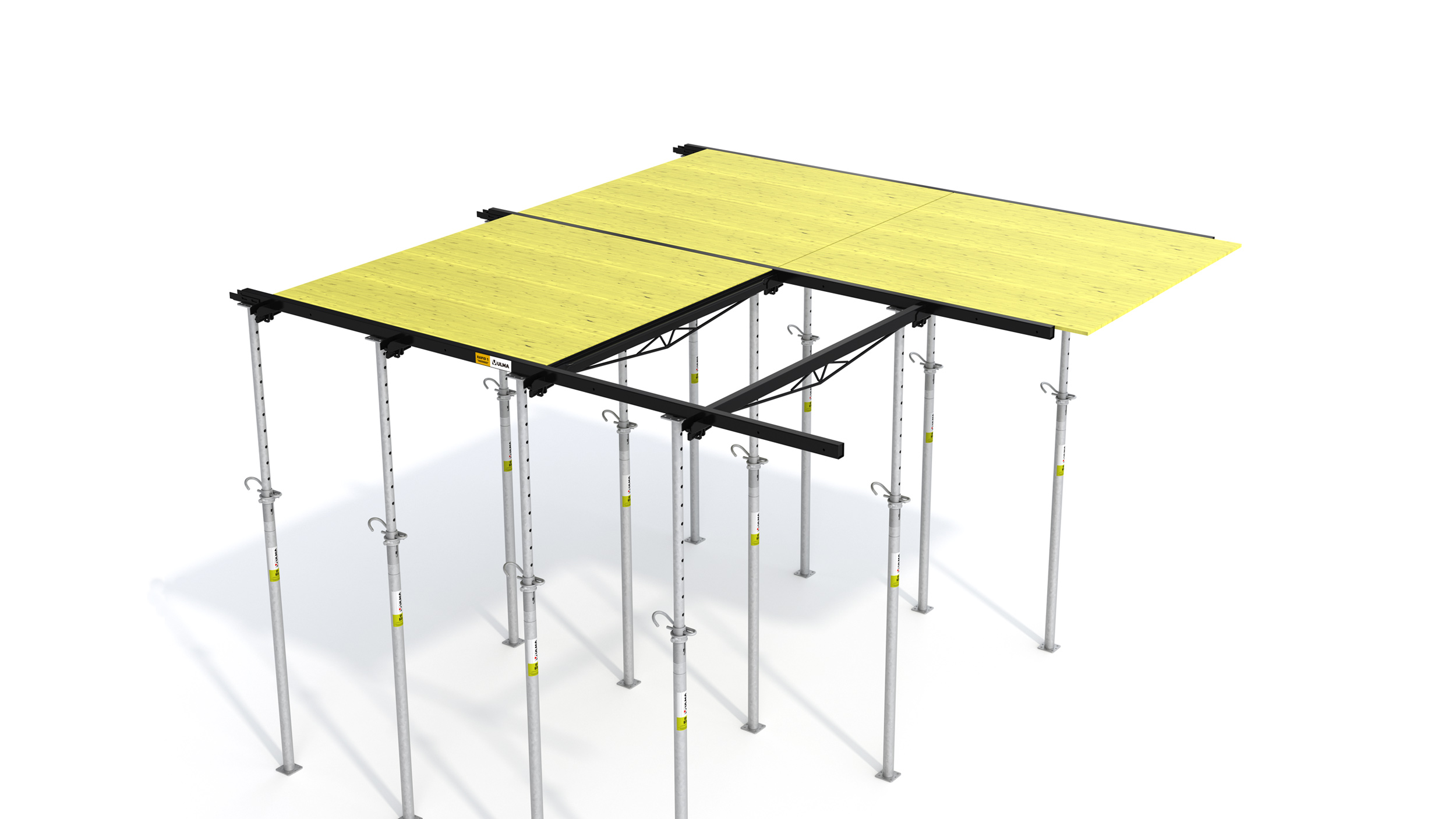

High performance recoverable slab formwork system for building construction. Highlights: light components, fast assembly and disassembly.
High performance recoverable slab formwork system for building construction.
Highlights: light components, fast assembly and disassembly.

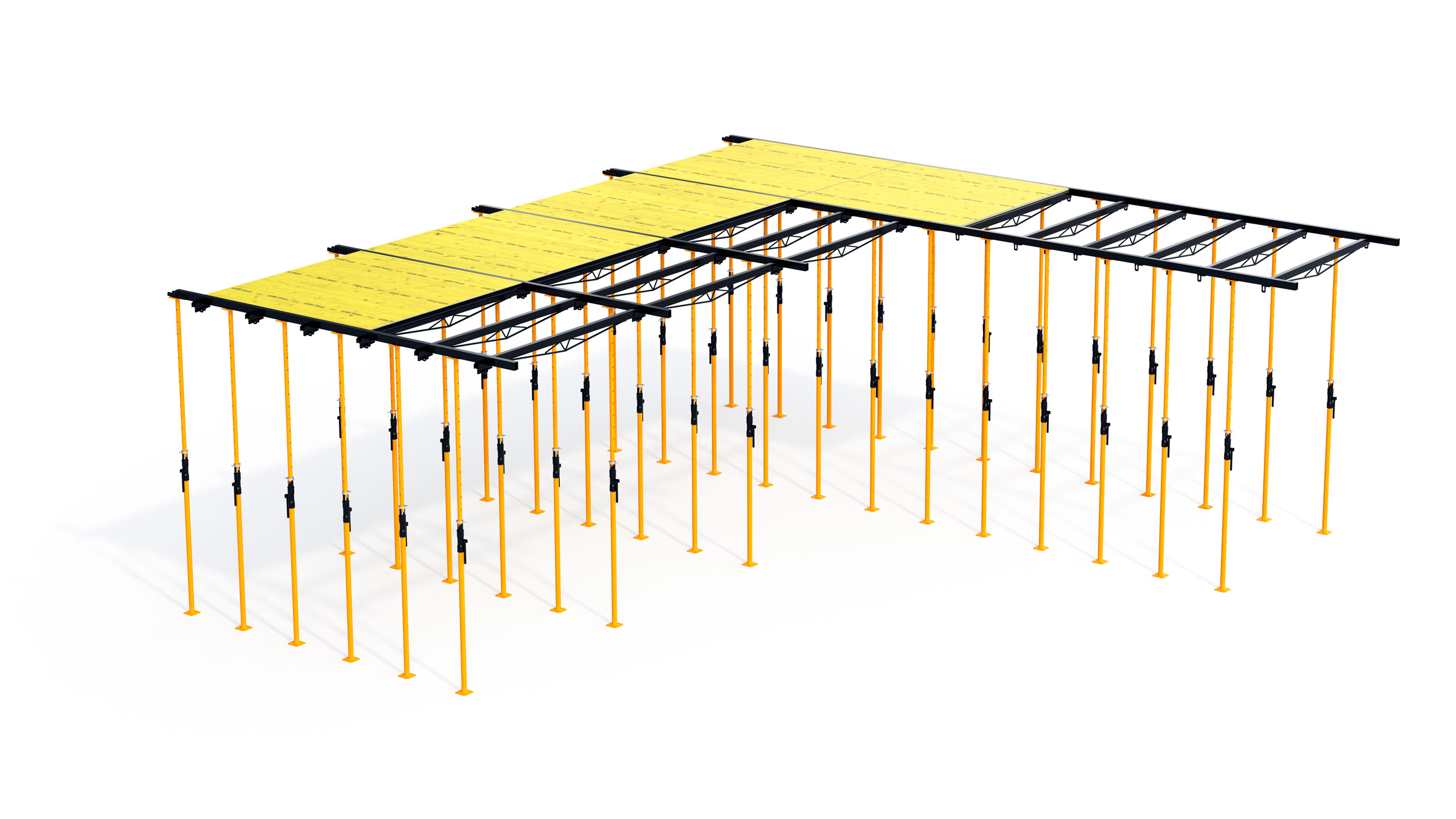

RAPID reticular slab formwork is ideal for the construction of all types of concrete horizontal structures: slabs, drop beams, column heads.

This is a simple high performance system for building construction (housing, shopping centres, car parks, hospitals, airports, etc.). Assembly only requires a hammer, the recoverable material is recovered 3 days after concrete pouring, it does not require repropping or moving the props to the completed formwork striking, and the see-through grids facilitate the introduction of carriages or mobile towers.

  • Two types of main beams and two system variants, both compatible:
    • RAPID 0.67 m: props and plywood supports each 0.67 m
    • RAPID 1 m: designed for lightweight slabs. Plywood supports located each 1 m; props each 1 m or 0.5 m, depending on requirements
  • Flexibility
    • Formwork support with shoring or prop
    • 90º assembly: different geometries depending on grid width and change of grid direction possible
    • Easy solutions for infillings on column and wall, drop beams and for perimeter areas
  • Safety
    • Steady board fitted in steel structure, no nailing
    • Collective protection: Perimeter and openings protection with handrails and nets under formwork to prevent falls from height
  • Quick, comfortable and easy assembly
  • The steel grid can be assembled previously to the placing of the plywood
  • Ensured workers’ safety. Also when placing slab lightenings and steel reinforcement
  • For erection, only hammer required
  • Long-lasting heavy-duty design. Highly resistant steel structure with polyester resin coating
  • Main beams and props (or shoring) make up the load-bearing structure of the system. The recoverable material can be retrieved
  • No re-propping or prop moving until complete falsework removal
  • Trolleys or mobile towers for erection can be easily moved (2 m distance between props)
  • Net under formwork: collective protection certified by the Spanish Technological Institute of Construction AIDICO
