Façade Scaffolding BRIO

Highly adaptable frame and ringlock scaffolding system for any facade geometry. Fast and safe to erect. Certified product.
Highly adaptable frame and ringlock scaffolding system for any facade geometry. Fast and safe to erect. Certified product.

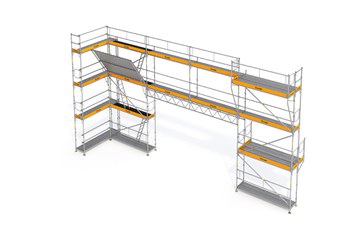

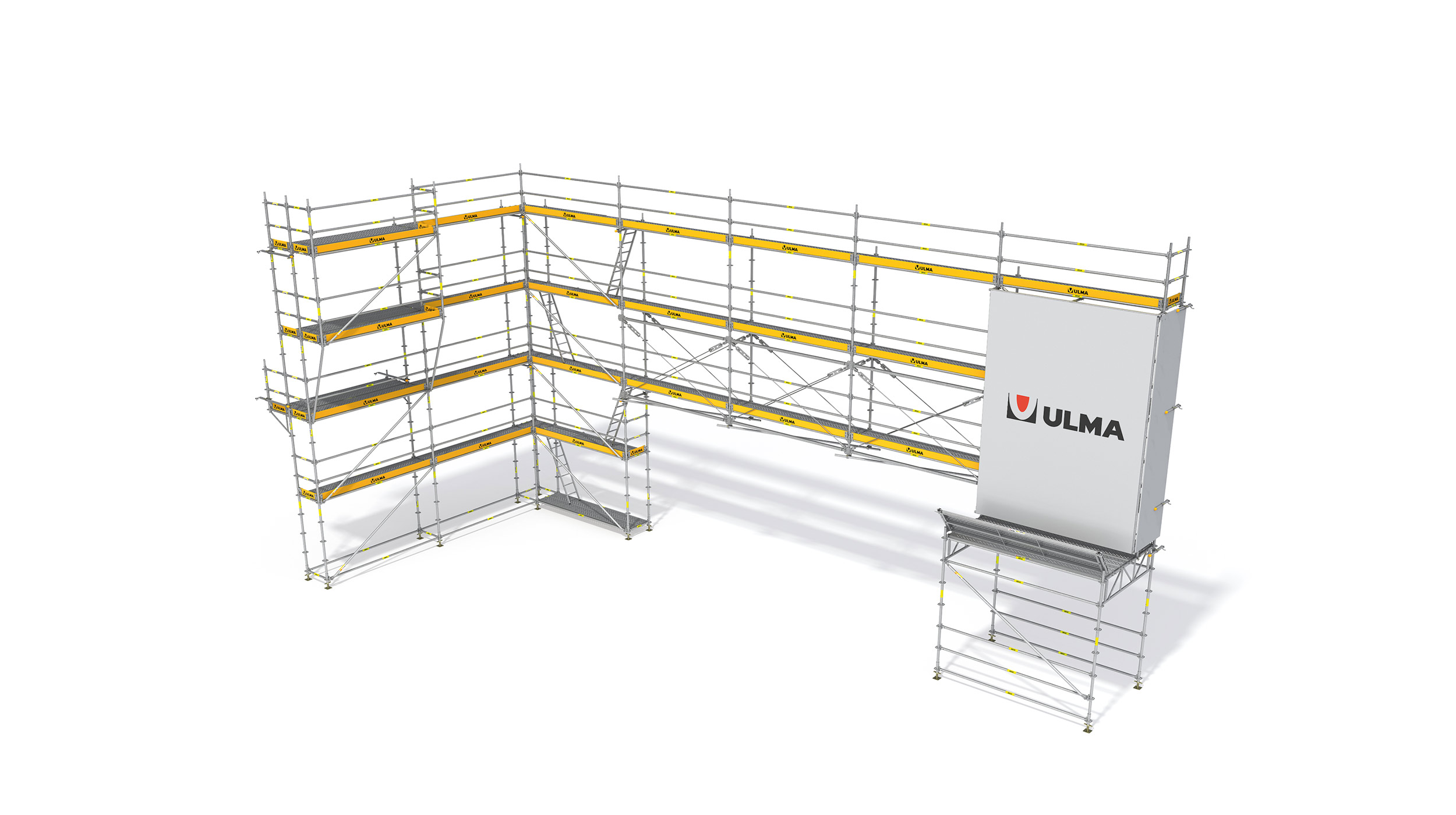

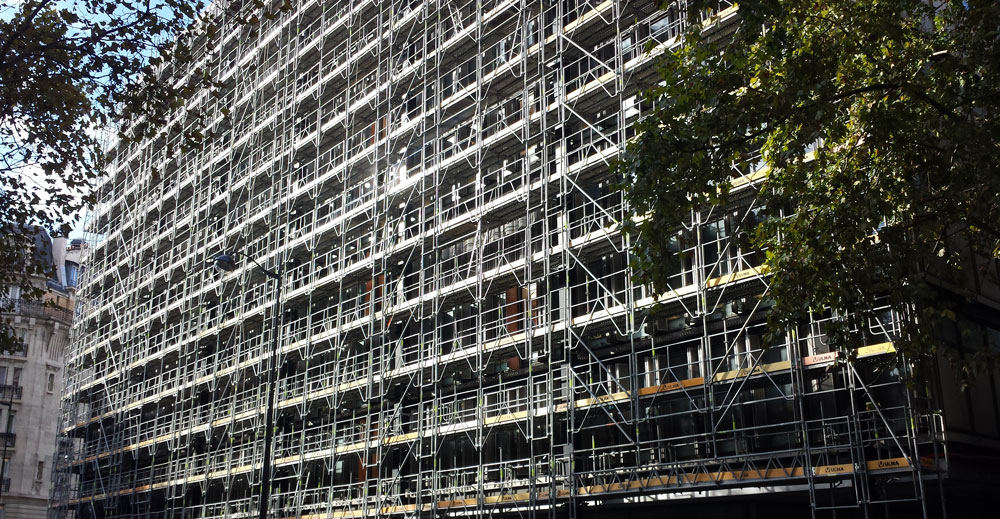

Certified façade scaffolding made of tubular components (standards, ledgers, and diagonals), featuring extremely rapid joining and assembly technology based on the BRIO ring.

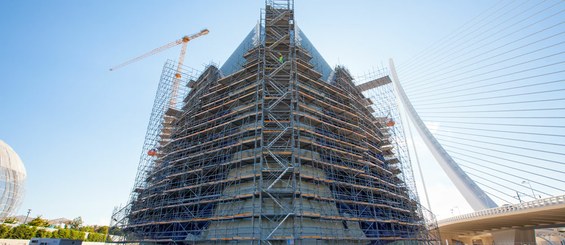

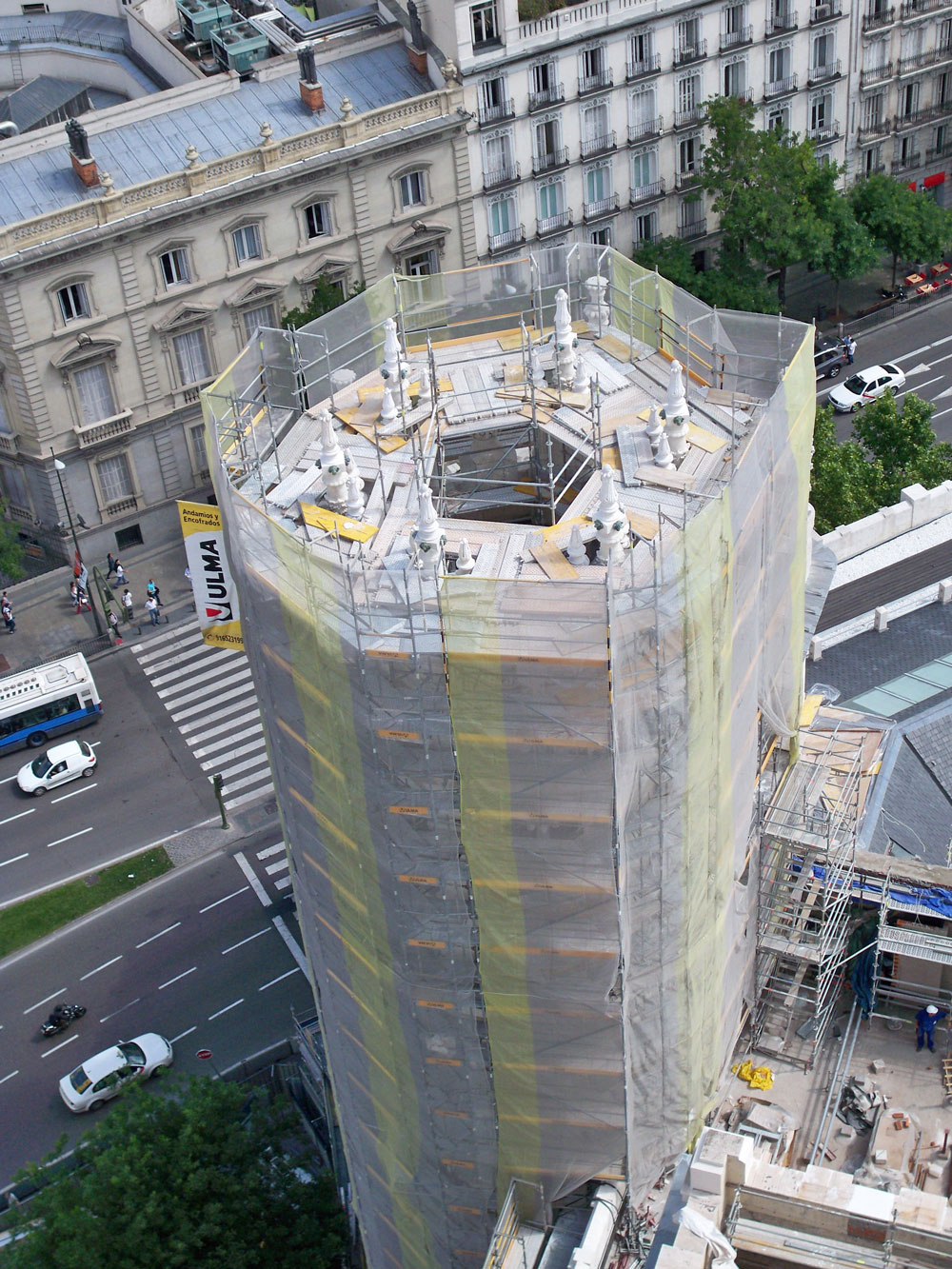

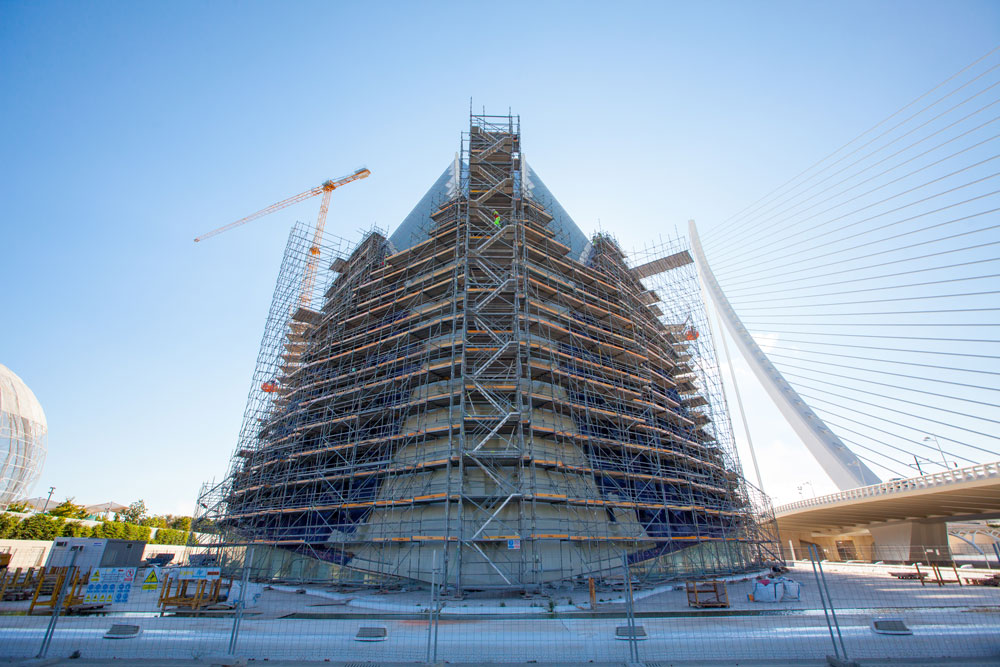

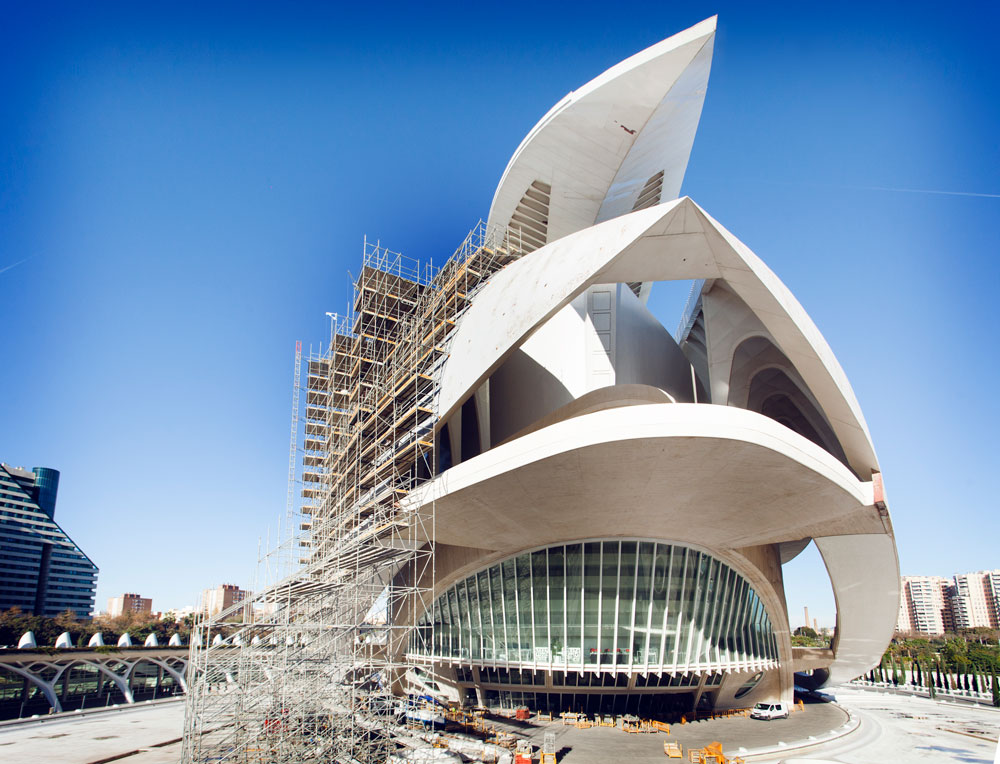

This versatile ringlock scaffolding system enables complex geometries to be covered efficiently even while meeting the highest safety standards.

It is undeniably an ideal modular scaffolding solution for any application where conventional scaffolding ceases to be profitable.

    • Certified under European Standards EN 12810-1/2 and EN 12811-1 2/3
    • Principal Components: standard, ledger, diagonal, platform, guardrail, screw jack, and toeboard.
    • Effective design using galvanised steel ensures fast, simple, and intuitive assembly with a high load-bearing capacity, making the scaffolding highly rigid and stable.
    • Formed by standards with ringlock rosettes every 50 cm from which the other components are connected.
    • Usual façade scaffolding widths: 0.70 m and 1.02 m, with 2.00 m in height between platforms.
    • Modules of 0.35 m, 0.70 m, 1.02 m, 1.50 m, 2.00 m, 2.50 m, and 3.00 m in width.
    • Class 4, 5, or 6 platforms, as defined by EN 12810-1/2 and EN 12811-1/2/3.

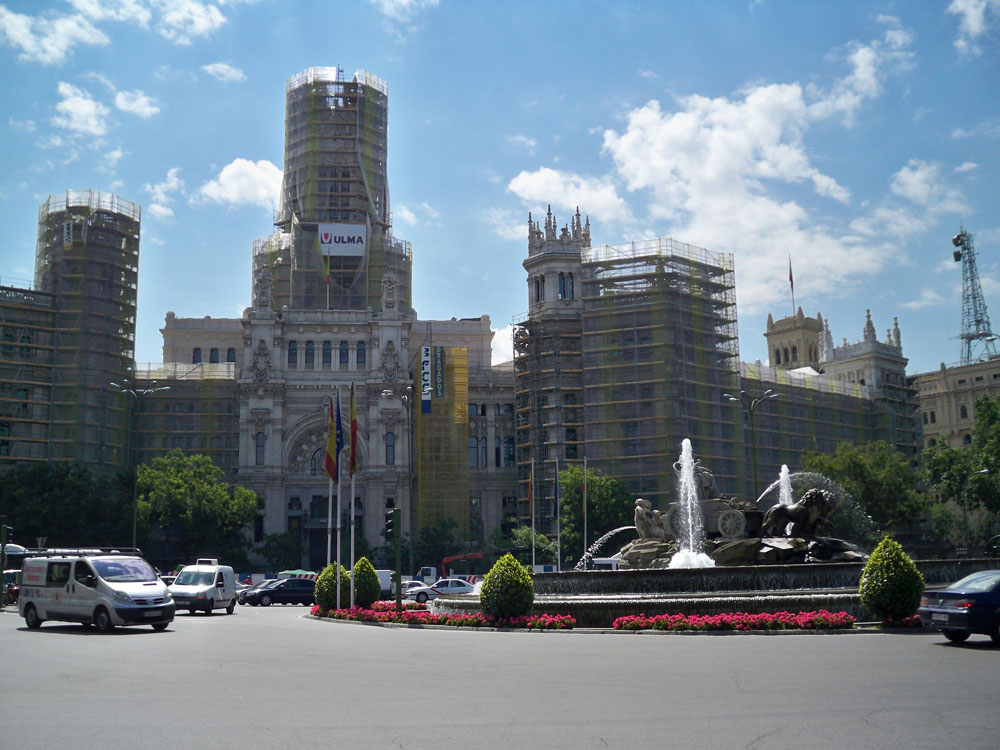

    • Profitable system that can be used in many construction fields, including residential and non-residential buildings, as well as structures for the industrial, energy, maritime, and leisure and entertainment sectors.
    • Certified under European Standards.
    • Versatile and flexible. An infinite number of structures is made possible.
    • A wide range of sizes and accessories are available, to offer maximum versatility.
    • Quick and easy to assemble, with few components.
    • Compatible with DORPA frame scaffolding, with which it shares many components. (plenty of shared items)
    • Protected against corrosion by hot-dip galvanisation: excellent surface finish and heightened durability.
    • Safety:

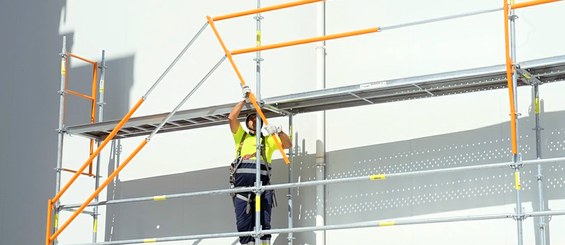

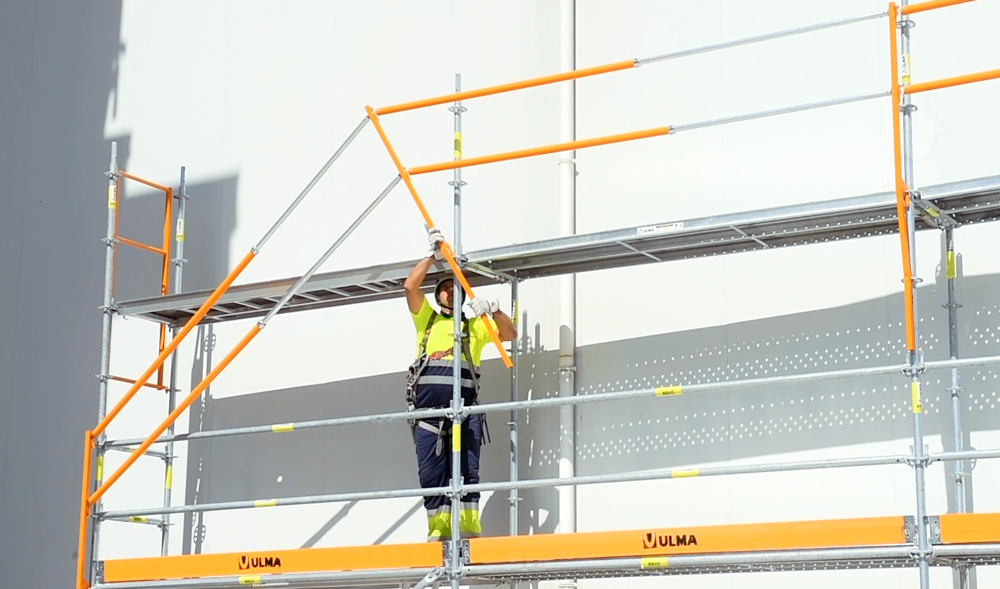

      • Assembly guardrail for collective protection. Assembly from below protects against falls when accessing upper levels, in accordance with Standard EN 795 (anchoring devices for protection against falls from height).
      • Guardrails for exterior and interior protection. Safe access through platform trapdoors or externally attached stairs, depending on scaffold height.
      • Non-slip platforms with a cotter-pin fastening system that prevents accidental movement.
      • Third-party safety: protection provided by configurations such as pedestrian walkways or protective fans that allow the free movement of pedestrians and vehicles without facing any manner of risk.
