Circular Column Formwork CLR

All-purpose circular column forming system that stands out for the simple panel jointing method. A great variety of diameters available.
All-purpose circular column forming system that stands out for the simple panel jointing method. A great variety of diameters available.

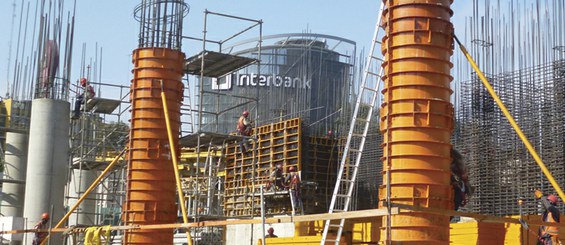

The CLR column formwork is designed for the concreting of circular section columns, in all types of building constructions.

The formwork system is composed of semi-circular metal panels that form the circular mould when joined with a simple bolted joint.  A wide range of panels is available, providing solutions for all types of construction, such as industrial and energy, sports complexes, station and airport buildings, etc.

  • Permissible concrete pressure: 80 kN/m2
  • Panels of 3 different heights:
    • H = 0.5 m
    • H = 1 m
    • H = 2 m
  • Wide range of diameters: 0.3 m to 1 m every 5 cm. In addition, there is a version of Ø 1.20 m
  • Lifting points and stabilisation built-in in the panel
  • Excellent concrete finishing
  • Simple jointing of panels with bolts (consisting of bolt and captive wedge)
