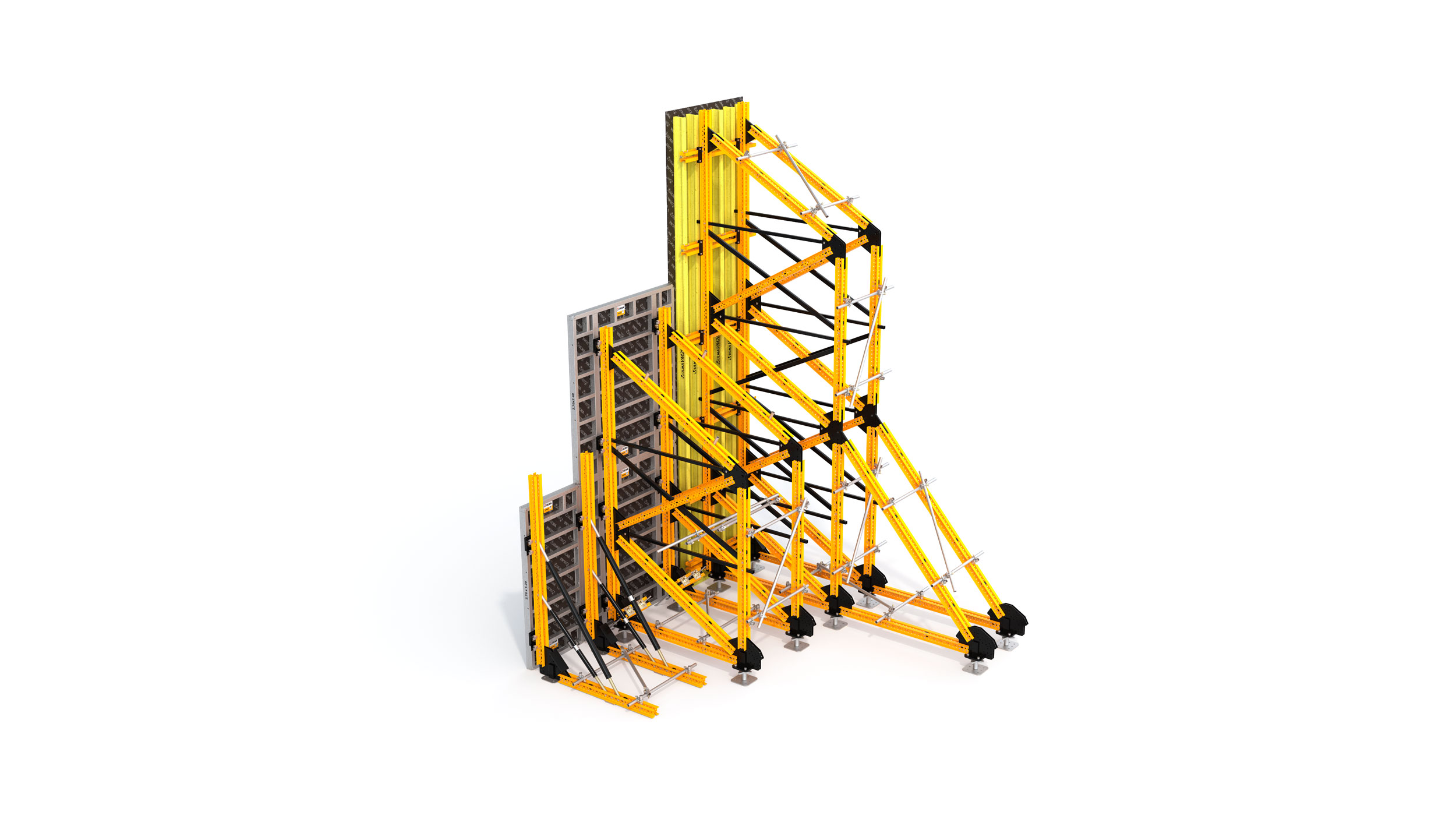

Single Sided Formwork SMK

Truss based formwork for single-sided walls up to 10.5 m. Configurable and compatible with all ULMA wall panels.
Truss based formwork for single-sided walls up to 10.5 m. Configurable and compatible with all ULMA wall panels.

Formwork system designed for constructing one-sided walls up to a height of 10.5 m, both for building construction and civil engineering. It is based on the MK system, which gives the product maximum flexibility with different possible configurations. Also, the system is optimised for transport and stacking on-site and is compatible with all ULMA wall formworks.

  • There are several truss types chiefly depending on the necessary formwork height. These truss configurations or assemblies are:

    • SMK Frame up to 3.4 m
    • SMK Frame > 3.4 m < 5.4 m
    • SMK Frame > 5.4 m < 6.6 m
    • SMK Frame > 6.6 m < 8.7 m
    • SMK Frame > 8.7 m < 10.5 m
  • Configurable. The same elements can be used in different truss configurations
  • MK System. Components are reusable as formwork, shoring, carriages, or brackets
  • Compatible with all ULMA wall formwork systems
  • Minimal transport volume
  • Mobile truss and formwork assembly
  • Quick and simple fastening to the formwork and base or foundation slab
  • Safety. Platforms and guardrails for work at height
