The LGR column formwork is designed for the concreting of rectangular section columns, mainly for residential construction.
The entire LGR formwork range consists of high resistance handset panels and has a plastic surface, making it a cost-efficient system with high quality exposed concrete finishes.
- High permissible concrete pressure: 80 kN/m2
- Possibility to construct short walls. Lateral panel joint with clamp (maximum columns dimension 1.3 x 1.3 m).
- Robust system. Steel frame with reinforced corners ensures a longer life of the panel.
- Panel range:
- Heights: 3 m; 1 m and 0.5 m
- Widths: 0.7 m and 0.5 m
| Panel width | Panel 0.7 m | Panel 0.5 m |
| Smallest column (mm) | 250x250 | 150x150 |
| Largest column (mm) | 600x600 | 400x400 |
- Efficiency of panels (long-lasting plastic shuttering face).
- Built-in and captive connecting elements in panels.
- Special panel stabilisation system.
- Lifting of gang.
- Wide range of panels that can be handled without crane.
- Few components.
- Chamfered column edges with chamfer strips (between two panels, without nails).
- Panels joining on top of each other with NEVI Clamp. Maximum column height 5 m, small panels located at bottom.
- Guaranteed safety: easy-to-integrate working platforms and access ladders due to the universal column platform.

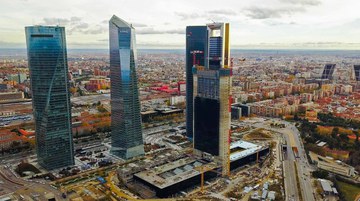

Caleido will join Madrid’s skyline as the fifth skyscraper in the 'Cuatro Torres Business Area'.

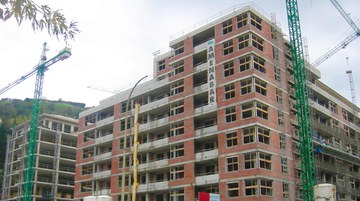

The town of Tolosa, with nearly 20,000 inhabitants and located a few kilometres away from an important city, has experienced an increased demand of new homes.
Tough plywood with smooth surface most suitable for different needs. It enables more repeated uses than conventional plywood and offers excellent fair-faced concrete finish.
A wide range of push-pull props to align and support wall panel gangs.

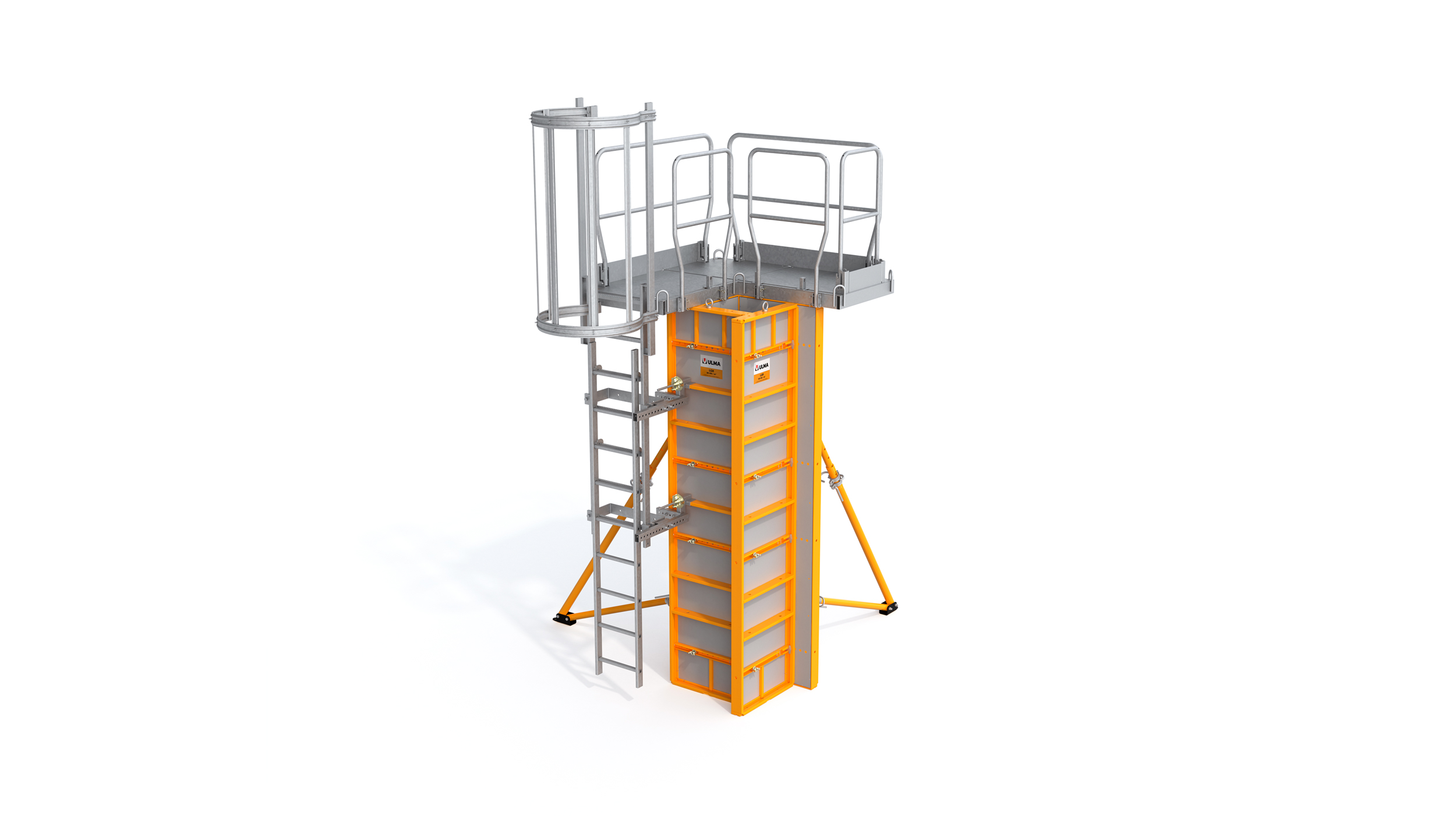

Cost-efficient safety system specially designed for column concreting tasks. Highlights: built-in safety and lifting elements. Easy to erect and dismantle.
