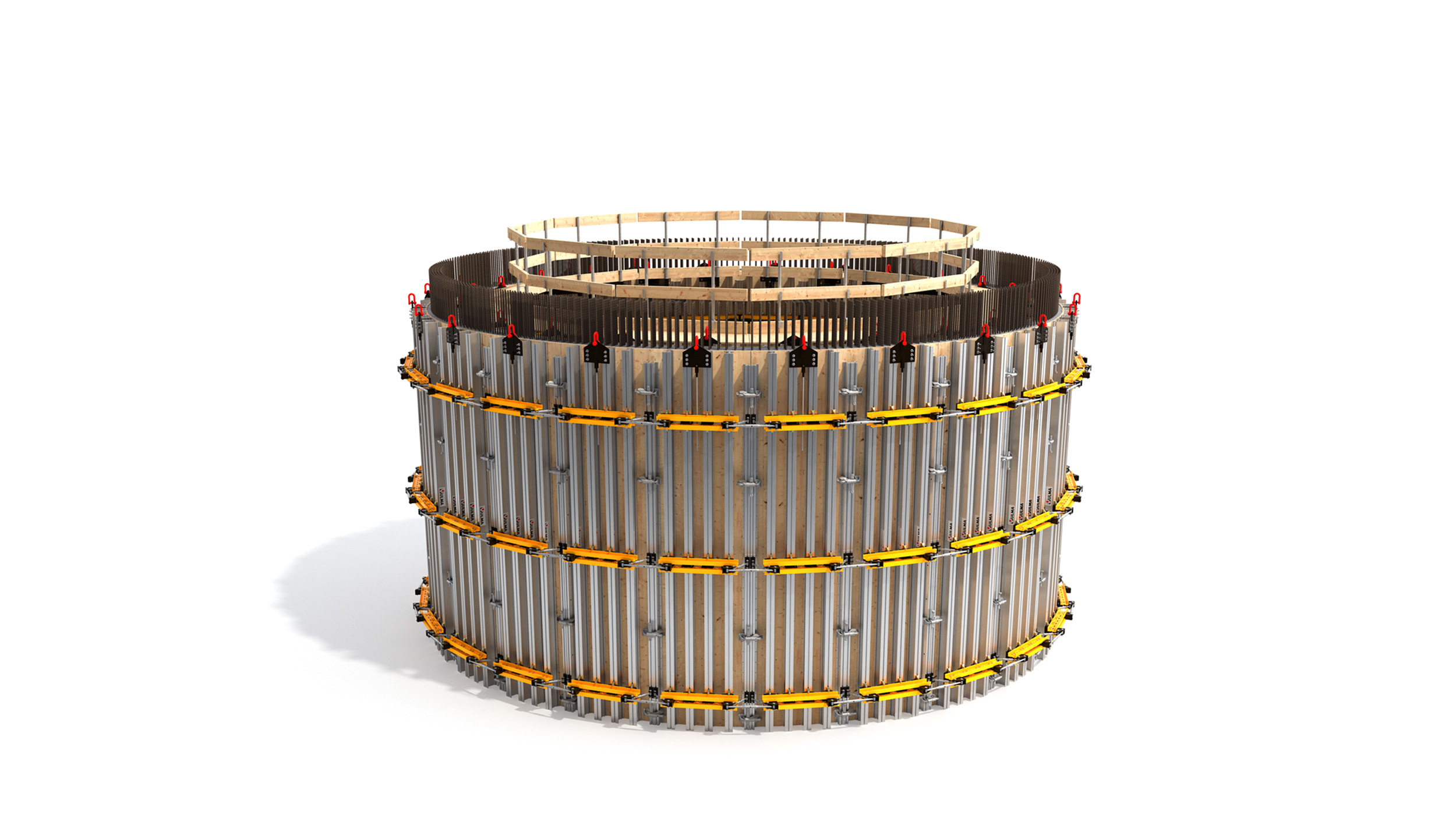

The MK-C FORM system has been created to provide a solution to form circular/curved walls. The system is composed of modular panels, which can be pre-assembled an adjusted according to the required radius.

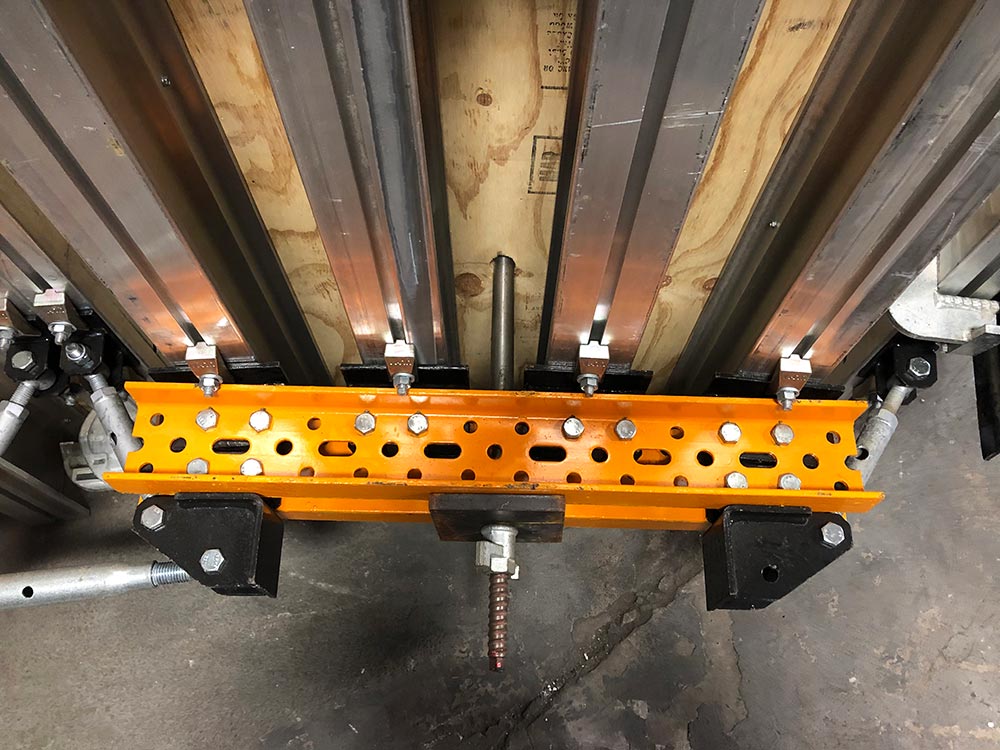

Panels consist of horizontal steel walers, vertical Aluminum Stringers and plywood form face.
The special MK-C aluminum profile allows MK-C FORM to combine with other ULMA formwork systems, such as MK-S FORM and MEGAFORM, using the MEGAFORM clamp seamlessly.
- MK-C FORM Circular system is designed to provide a solution to form circular/curved walls with a minimum inside radius of 10’ – 0”.

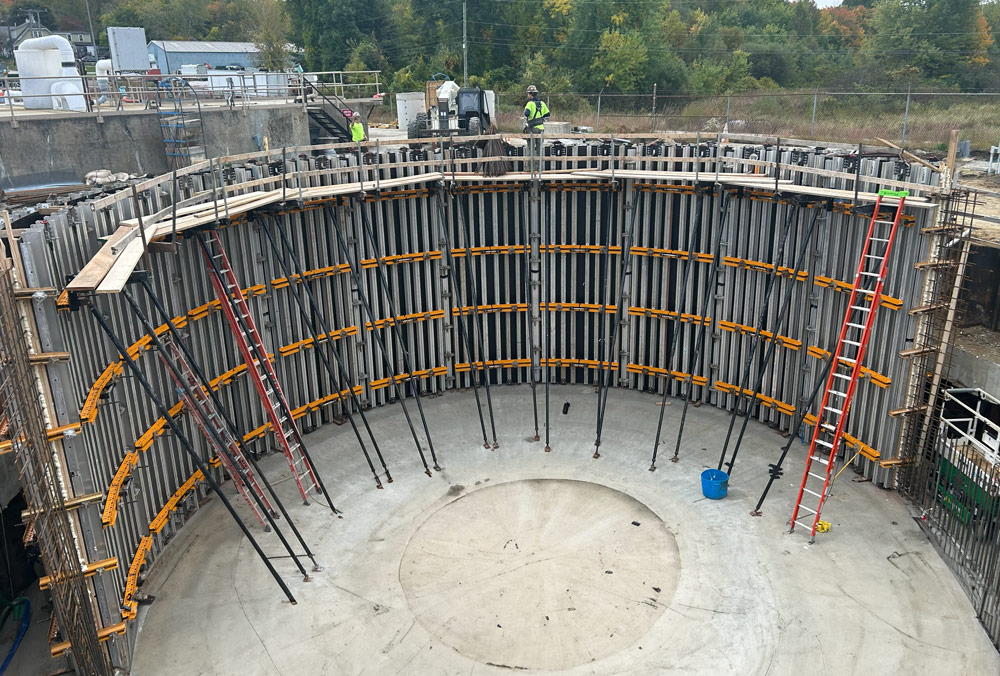

- Ideal for round structures such as water tanks, clarifiers, silos and other circular structures.
- Designed for a minimum concrete pressure of 1,200 psf.
- Panel height range: : 4’- 0”, 8’- 0”, 10’- 0”, 12’- 0”, 14’-0”, 16’- 0”, 18’- 0”, 20’- 0”.
- Panel widths: Outside panel: 4’- 0” or 8’- 0” wide.
- Inside panel: as required to work with an outside panel based on radius and wall thickness.
- Cost-Efficient:
- Architectural liners can also be easily attached, removed, and reused.

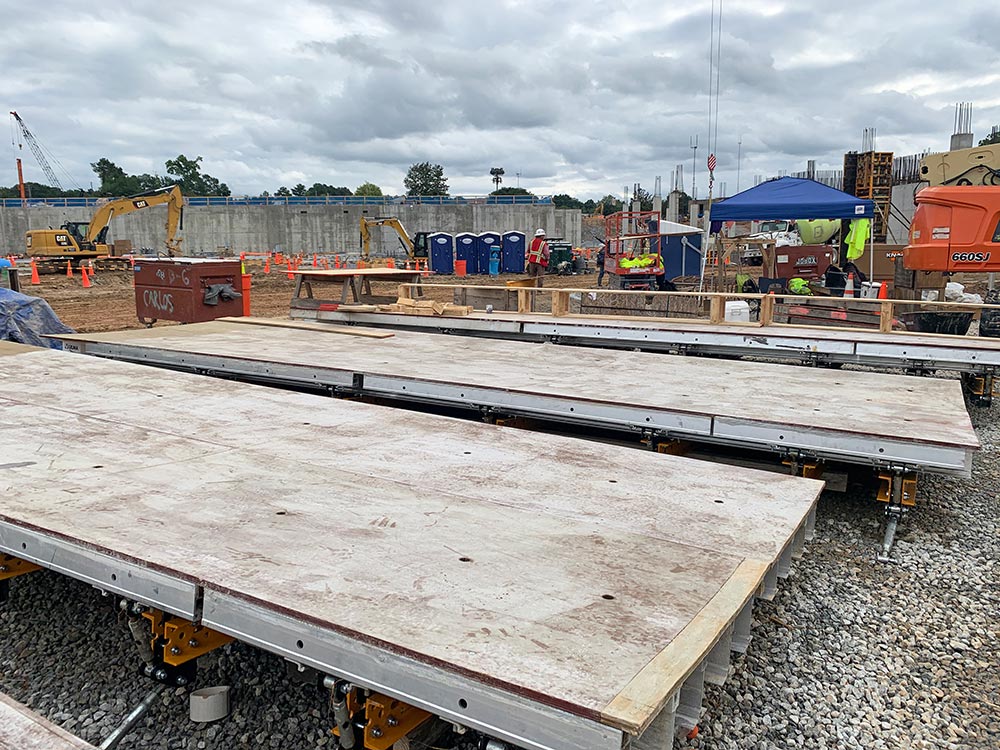

- Reduced Installation time: arrives pre-assembled or partially assembled to accelerate installation procedure.
- Simple design with fewer components makes placement fast, easy and efficient.
- Concrete finish:

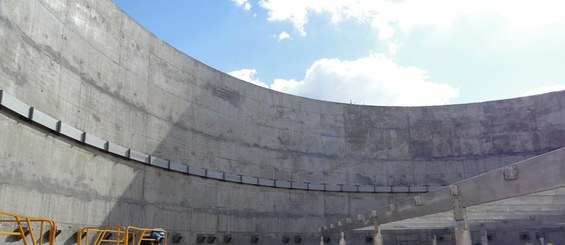

- Available high-quality phenolic plywood for smooth concrete finish.
- Versatility:
- Easily integrates with all necessary formwork safety accessories.

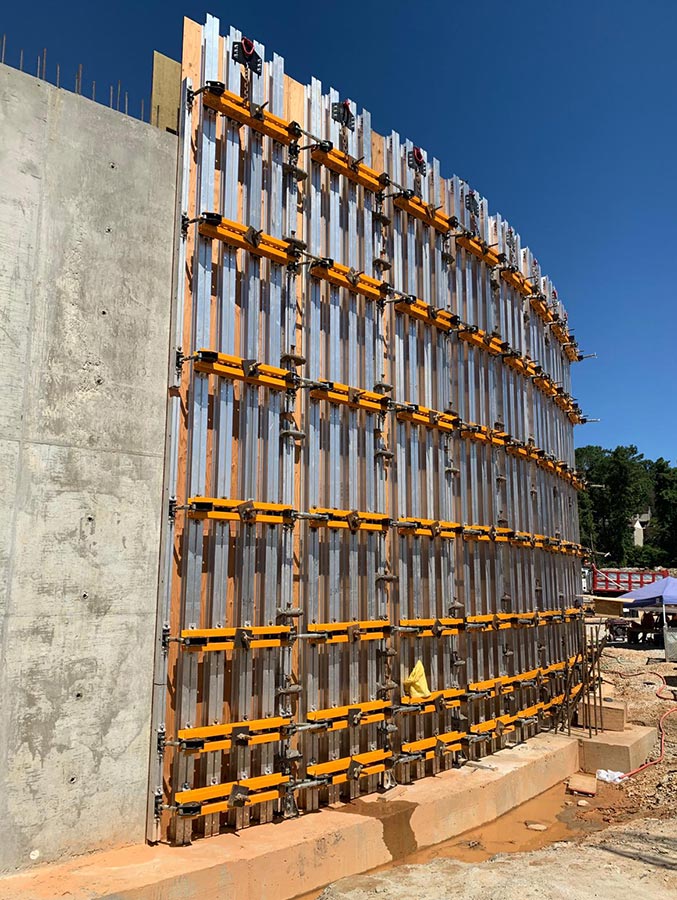

- MK-C FORM system with combination of ULMA’s MEGAFORM and MK-S FORM Straight forming systems, can form curved walls and complex geometries.

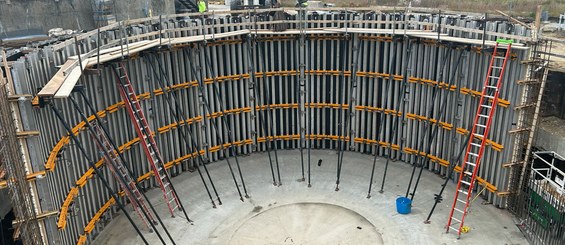

- MK-C FORM system accommodates most tanks solutions and easily allows rebar penetration for troughs.
- MK-C FORM system combines effortlessly with ULMA’s Single-Sided wall forming solutions.
