Megalite
6 Solutions in 1 System

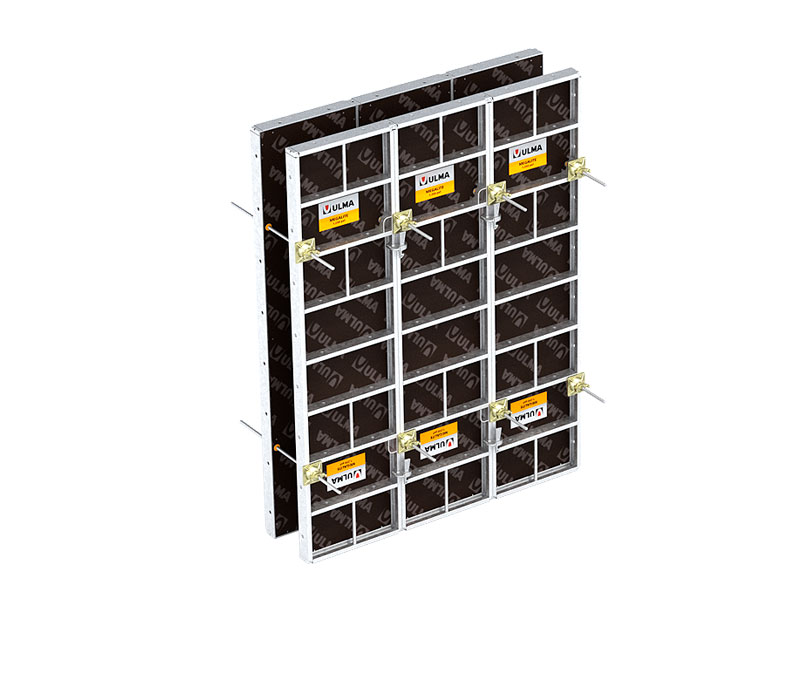

MEGALITE is a modular wall formwork in imperial measurements. The system is ideal for forming foundation walls, shear walls, or any single- or double-sided wall.

Panels can be angled from 75 – 180 degrees with hinged corners on the inside and outside of the wall.

Safety is also an essential feature of the MEGALITE. Walkway brackets and pipe braces are easily attached to the panels.

More features:

• Pilasters
• 90-degree wall intersection
• Bulkheads
• Climbing support brackets

Compatibility with Steel-Ply

The MEGALITE system has lateral holes in all panels and fillers, making it possible to wedge bolt together with Steel-Ply panels and accessories.

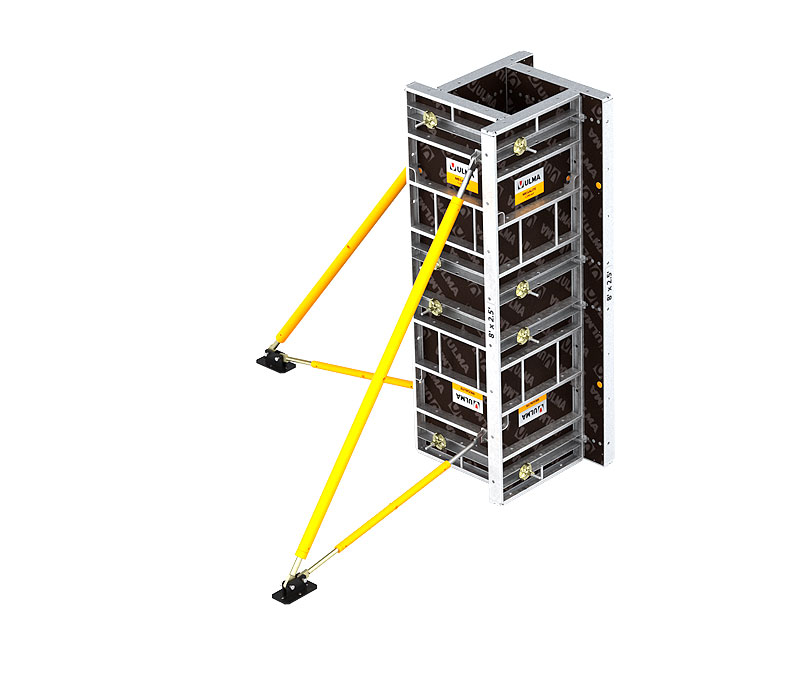

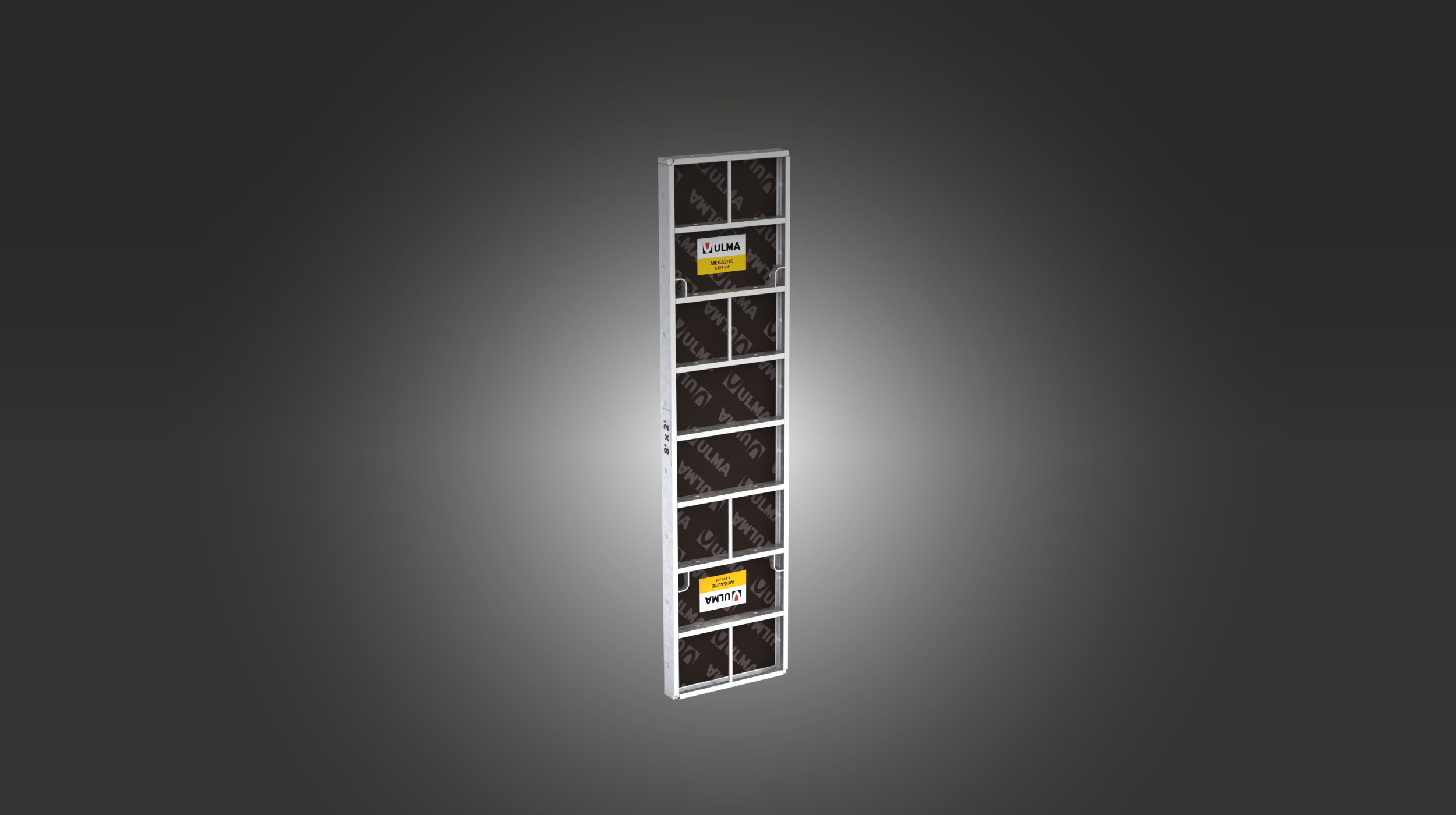

MEGALITE’s lightweight design perfectly fits column forming that need to be handset.

Using a single panel, columns can range in width from 6” to 27” and can be adjusted in 1” increments.

By combining standard panels with universal panels, larger columns can be formed.

Column types:

• Even & odd dimensions
• Square & rectangular columns

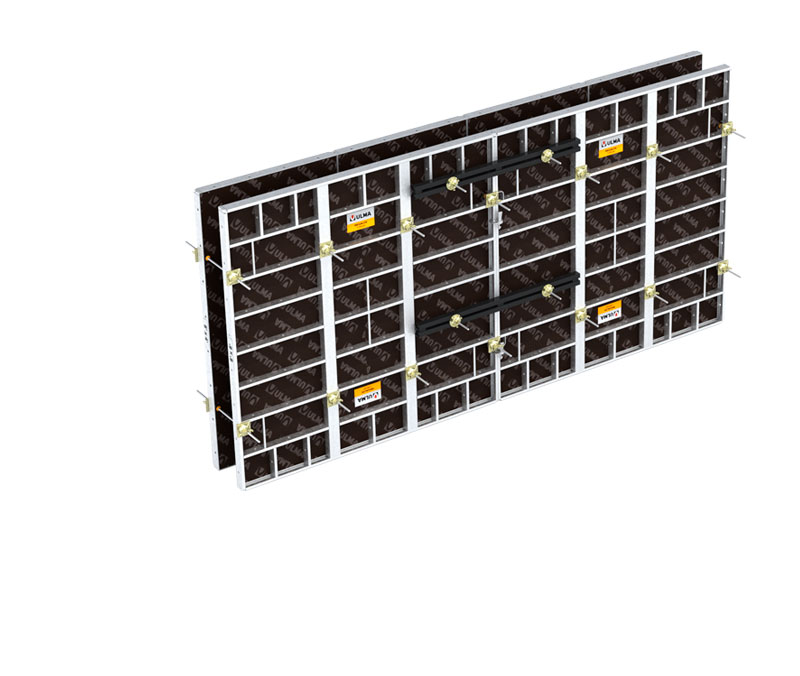

MEGALITE panels can be ganged on-site and set using a crane. Panel forming using clamps saves time since it is possible to set up and strip quickly and easily using only a hammer.

Gangs can be assembled in 6” increments by combining different panel widths.

• Note: 8’x8’ and 8’x4’ panels are for sale only
• Height range: 8’, 6’, 5’, and 4’
• Width range: 30”, 24”, 18”, 12”, and 6”

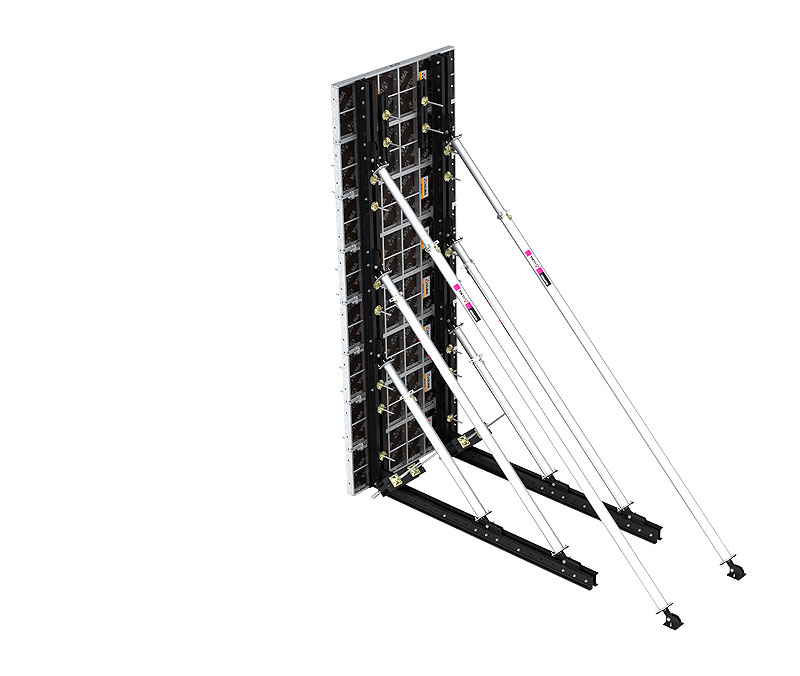

ALUPROP Forming Single-sided Handset Formwork is specially designed for one-sided forming conditions that don’t have access to a crane. The system is ideal for obstructed areas in tight locations.

All the components can be easily moved and placed by hand. The system supports heights from 8’ to 16’.

More features:

• 90-degree corner solutions
• Pilasters with Universal MEGALITE panels

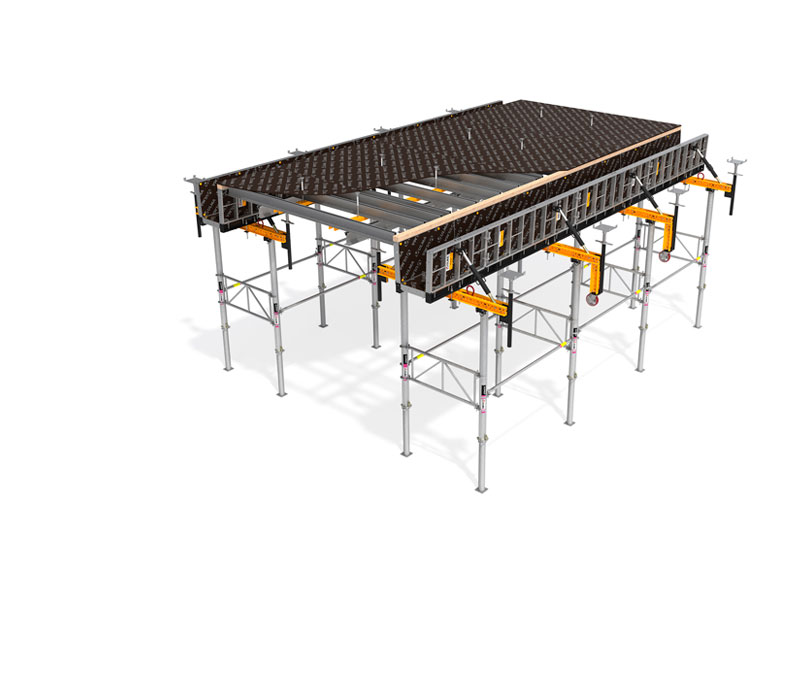

The Parking Garage Shoring System GARAGE BEAM SYSTEM uses MEGALITE Panels for the beam forms and high-strength GB panel corners. The phenolic plywood face on the MEGALITE panels provides excellent concrete finishes.

Concrete beams of various sizes and depths can be achieved using MEGALITE panels and accessories. No ties are required.

Moreover, columns can be easily built on-site using the MEGALITE panels.

More solutions:

• Slopes & ramps
• Re-shoring
• Slab deck support

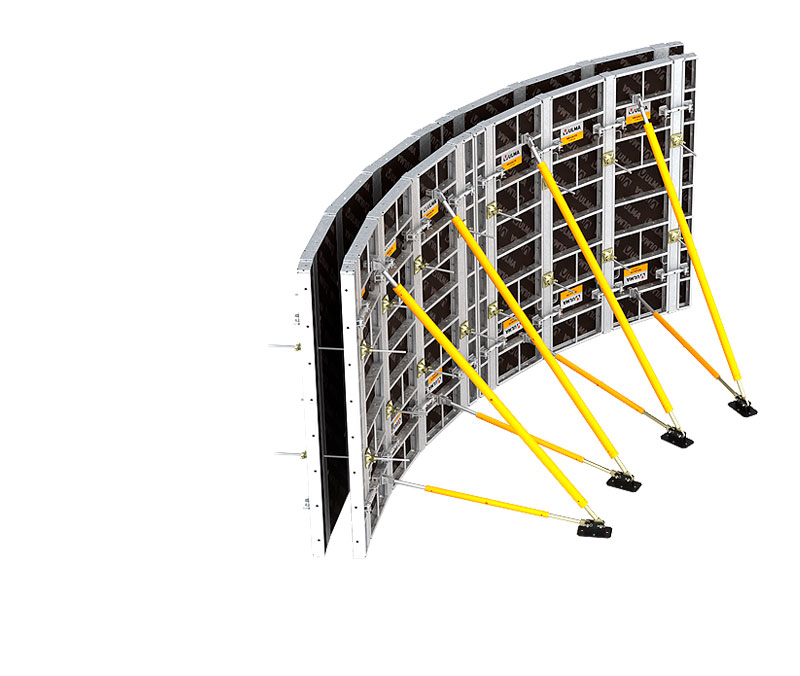

MEGALITE CIRCULAR is a flexible chorded radius formwork system for circular structures that uses standard MEGALITE panels. The system is versatile and saves construction time since the modular panels arrive pre-assembled at the job site.

Higher heights are available with stacked gangs assembled with MEGALITE panels. The system can be easily adjusted to different radiuses and wall thicknesses in the field.
