Water Treatment Plant, Prague, Czech Republic

The largest facility of its kind in all of Central Europe

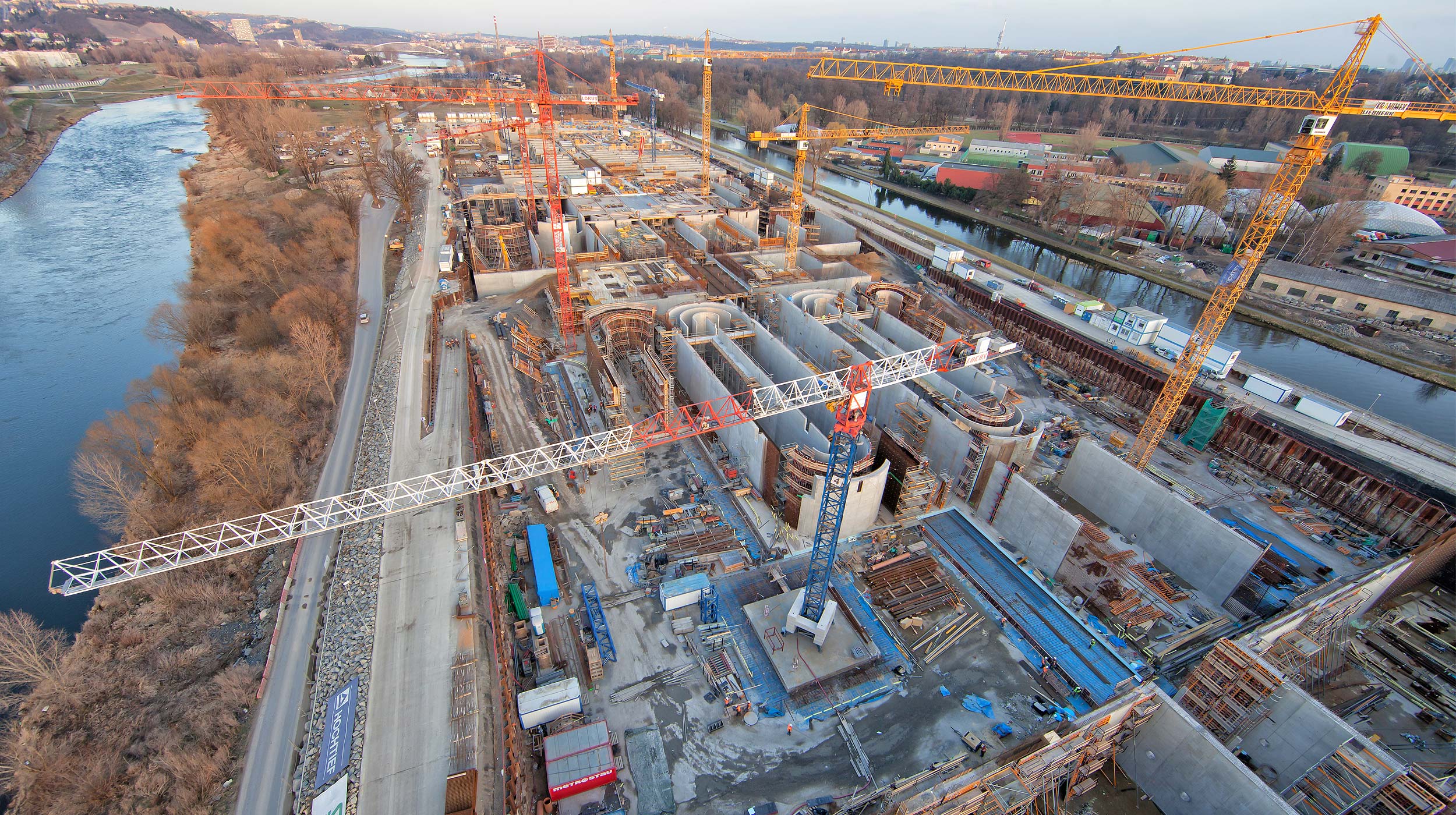

The new water treatment plant in Prague is the biggest project in the Czech Republic currently underway, and when completed will be the largest facility of its kind in all of Central Europe.

Description

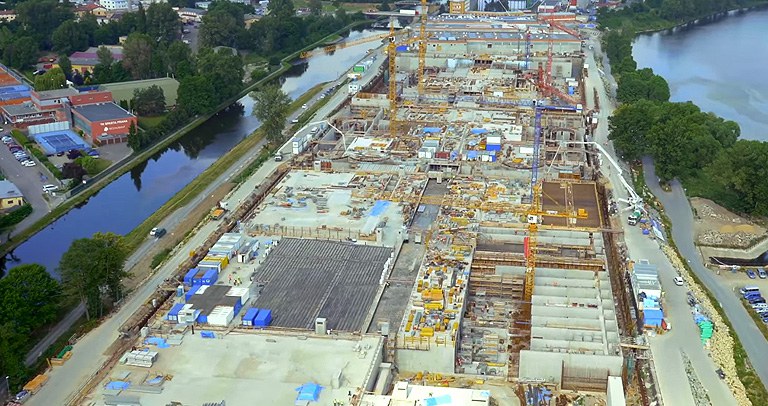

The project is divided into two parts, which will occupy a total of 400,000m2 and require 500,000 m3 of concrete: a complete overhaul of the existing treatment plant on the island of Císařský Ostrov, as well as the addition of independent treatment facilities – dubbed the “New Water Line” – which will incorporate mechanical and biological processing with an additional chemical treatment system. The new technology introduced will bring the facilities in line with the European Council emissions guidelines for “sensitive areas”. Once improvements are completed, the plant will utilise the updated infrastructure to conduct 40% of all water treatment, while the new line will be responsible for the remaining 60%.

Solution ULMA

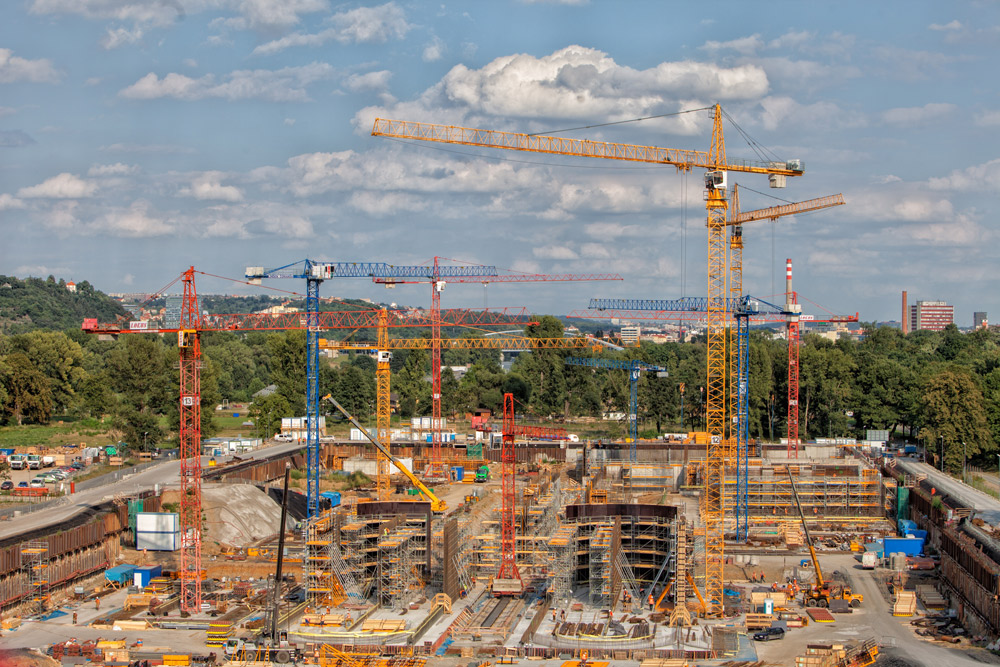

The construction of the new line is divided into four work zones:SO04, SO06, SO09, and SO10. The magnitude of these areas, not only in size but in the complexity of the operations involved, requires them to be considered as independent projects, each with its own construction manager, worksite coordination, etc.

The Czech ULMA team provisioned pre-assembled systems, thus saving assembly and erection time on-site. These systems will remain on the worksite throughout the entire construction process. ULMA offers pre-assembly services as a way for clients to cut costs and increase the profitability of their projects.

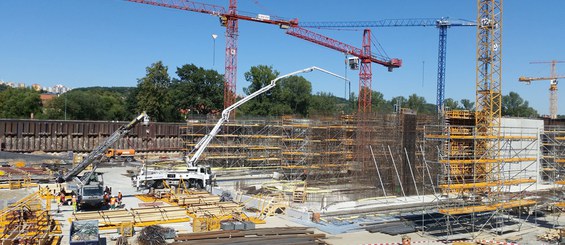

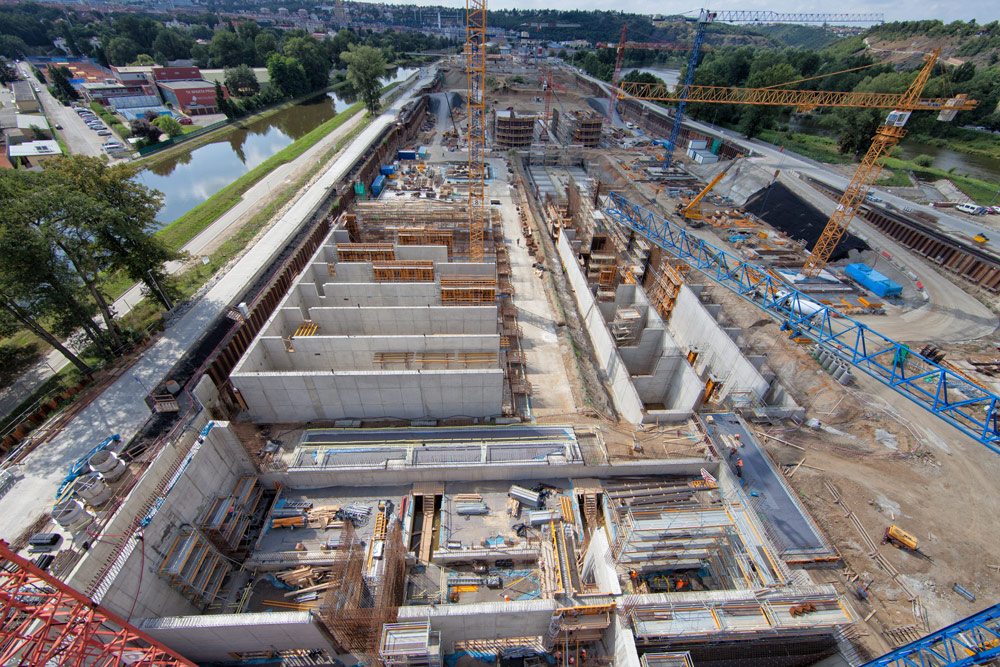

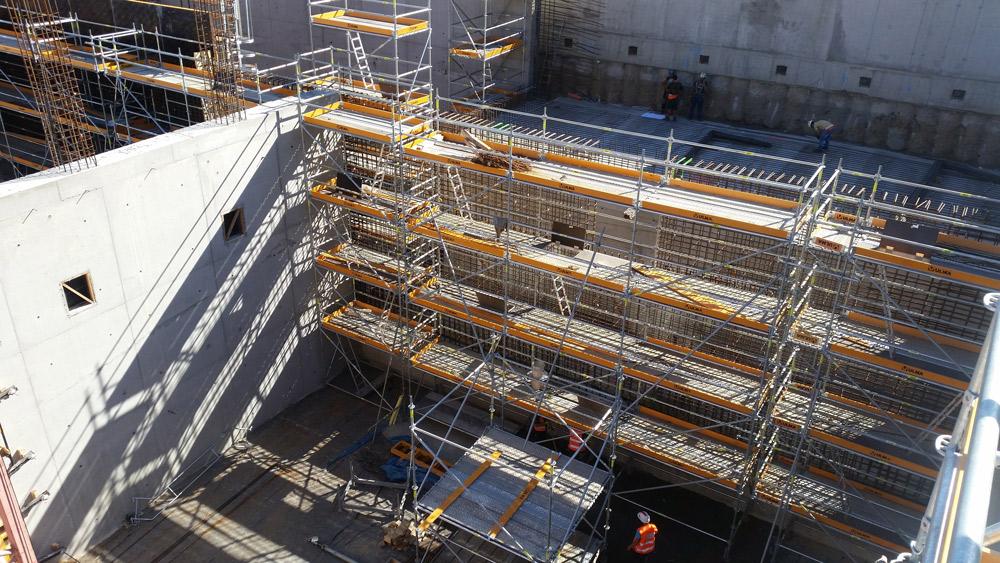

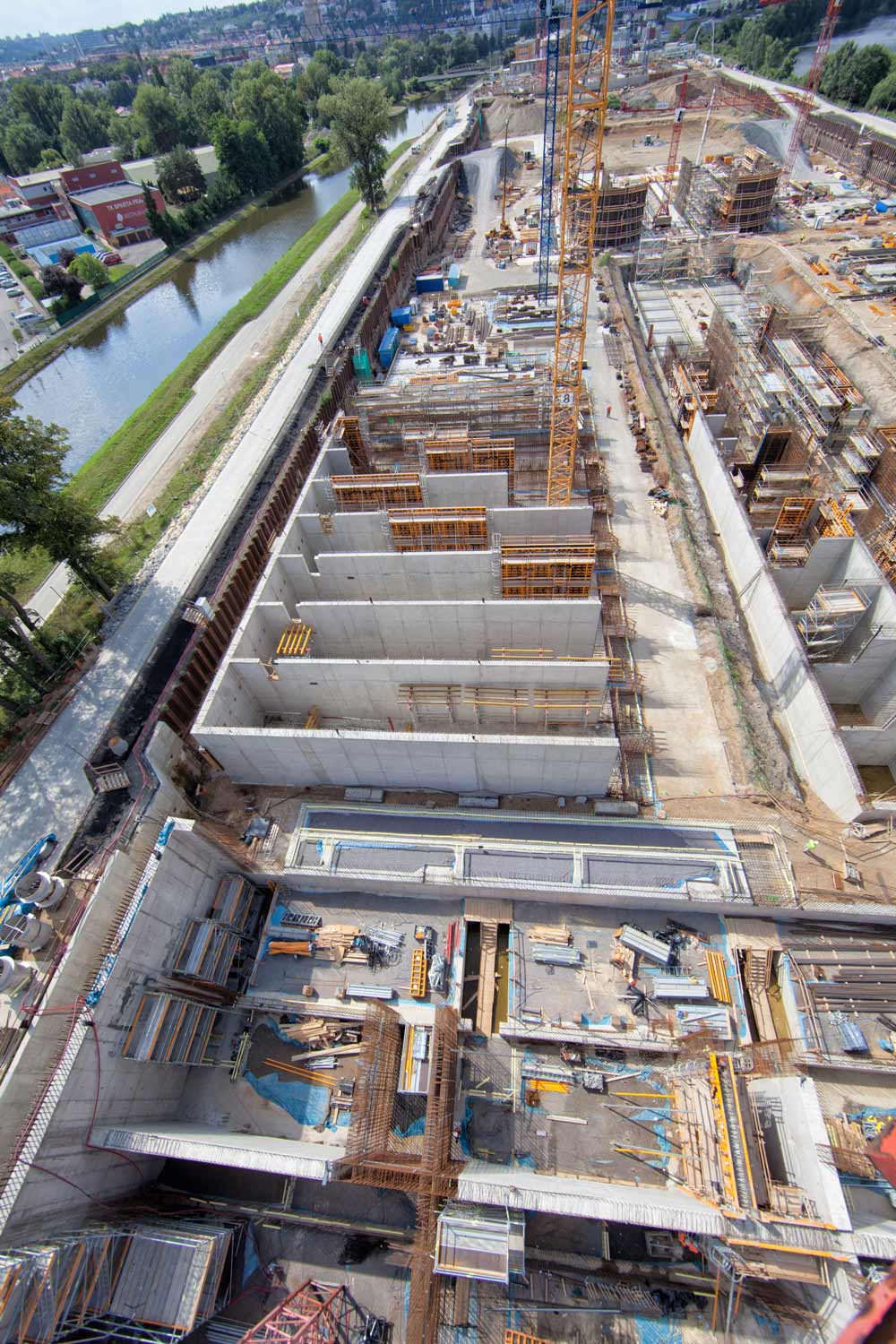

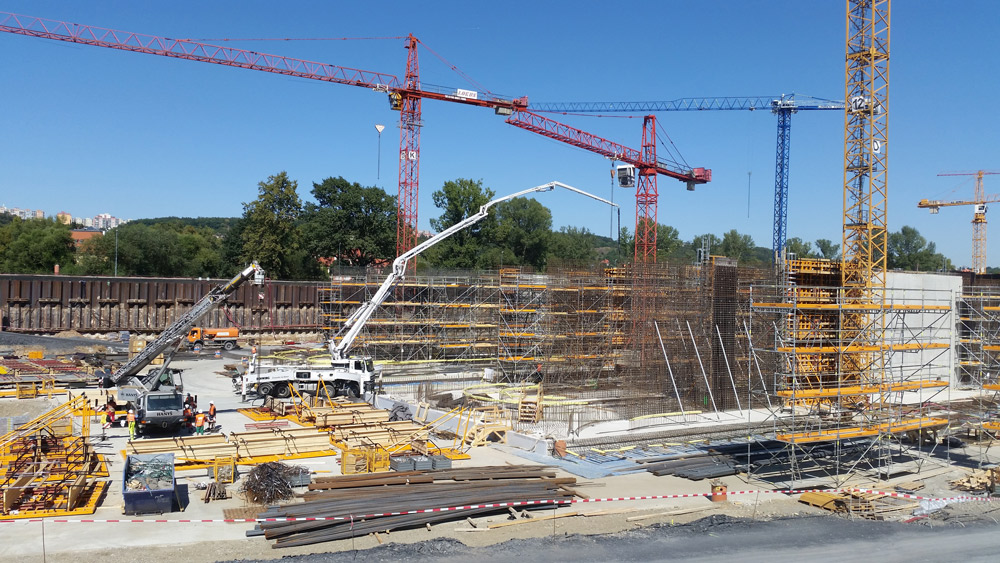

The sheer size of this project, not to mention the diversity of tasks required, demanded specific solutions for each of the four work zones. The technologies at work and the continual circulation of water necessitate extremely precise execution of the geometry, finishing, and the entire pouring process. The MK System – ENKOFORM VMK for vertical applications and ENKOFORM HMK for horizontal applications – was used to build more than 30 specialised structures. Moreover, the walls, measuring more than 12 m in height, were formed in a single pour using ORMA Panel Formwork reinforced by MK Walers.

Close and constant cooperation between the customer and the ULMA team has been critical to the completion of the project in accordance with the established criteria and deadlines. ULMA’s comprehensive solution includes the continuous on-site assessment. Specialised technical personnel from every department were present to assist in material delivery, systems erection, and other critical tasks.

Safety considerations formed a vital part of this project. ULMA demonstrated its commitment to guaranteeing safety throughout the entire construction process by provisioning all safety systems required.



SO04

SO06

SO09

SO10

Measures

87 m x 122 m x 9 m

275 m x 115 m x 11,5 m

1140 m x 118 m x 14 m

53 m x 60 m x 12 m

Products

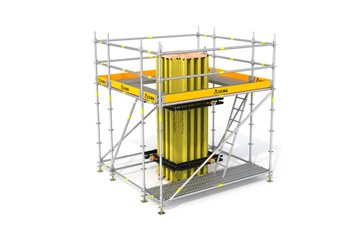

NEVI, BRIO, ORMA, EP, ALUPROP, ENKOFLEX, MK, T-60

NEVI, BRIO, ALUPROP, MK

NEVI, BRIO, ALUPROP, MK

NEVI, BRIO, ALUPROP, EP,  ENKOFLEX, MK, T-60

Wall height

+ 8 m

+ 10,5 m

+ 8 m

+ 12 m

Equipment

(peak months)

2400 m² for walls

2200 m² for slabs

4950 m² for walls

1900 m² for slabs

2750 m² for walls

2200 m² for slabs

1800 m² for walls

4000 m² for slabs
