Configurable Climbing Bracket BMK

Highly flexible crane-lifted climbing system, adaptable to inclined and curved walls. Minimum transport volume.
Highly flexible crane-lifted climbing system, adaptable to inclined and curved walls. Minimum transport volume.

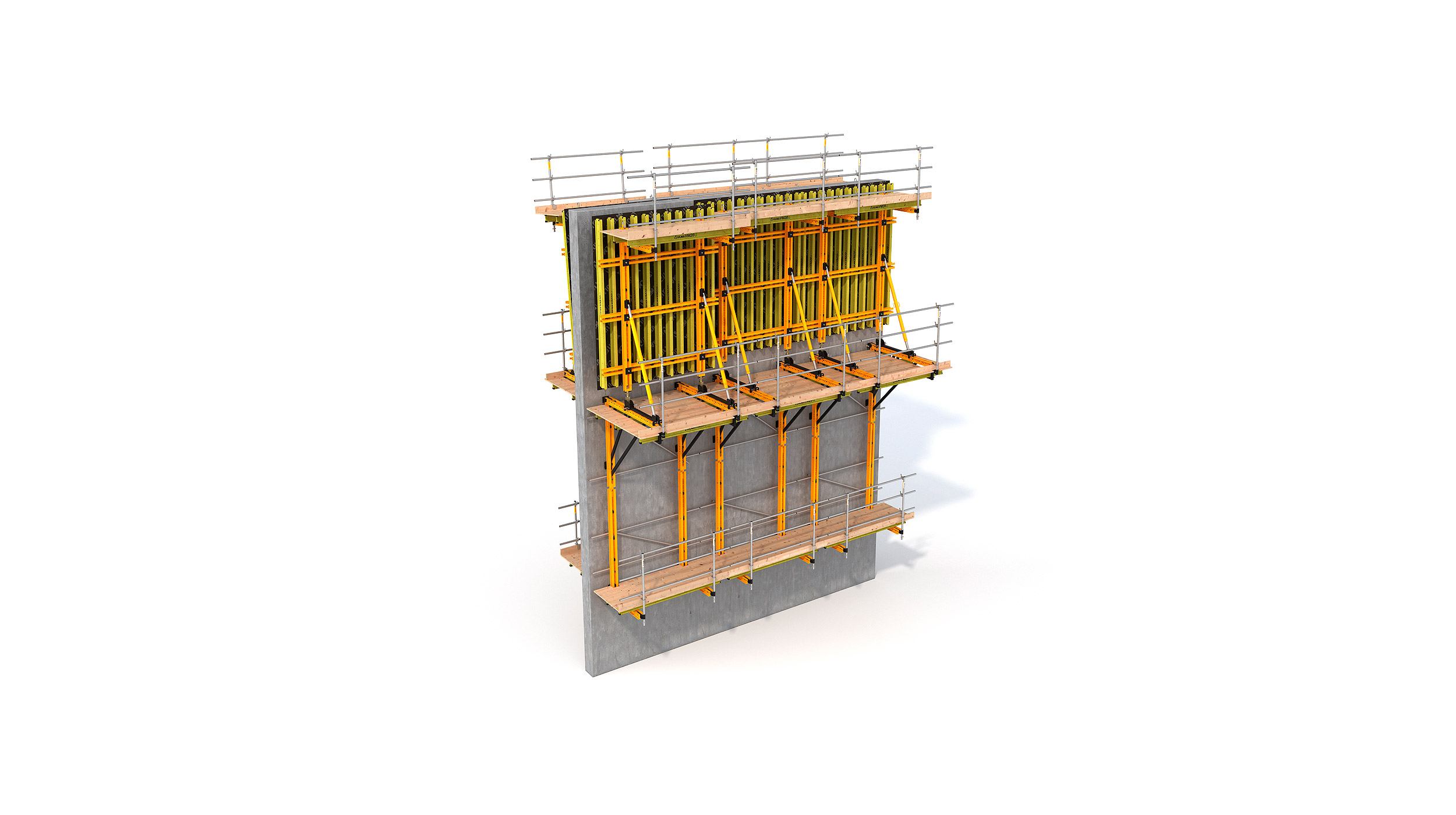

The BMK climbing system is composed of MK system components, standard-length MK walers and specific BMK accessories.

Several standard configurations for both sides of the wall.

Climbing bracket BMK-240

  • For Building Construction and Civil Works
  • Platform width: 240 cm
  • 35 m2 formwork surface per pair of climbing brackets
  • Anchorage to wall: DW15, DW20
  • Formwork stripping distance: 80 cm with roll-back carriage, or 5 cm to 15 cm with tilt-back system
  • Adaptable to inclined walls

Climbing bracket BMK-170

  • For Building Construction and Civil Works
  • Platform width: 170 cm
  • 35 m2 formwork surface per pair of climbing brackets
  • Anchorage to wall: DW15, DW20
  • Formwork stripping distance: 5 cm to 15 cm with tilt-back system
  • Adaptable to inclined walls

Climbing bracket SBMK-180

  • For Civil Works
  • Platform width: 180 cm
  • Wall anchor: DW20
  • Formwork stripping distance: 5 cm to 15 cm with tilt-back system
  • Adaptable to inclined walls
  • High flexibility guaranteed with few components

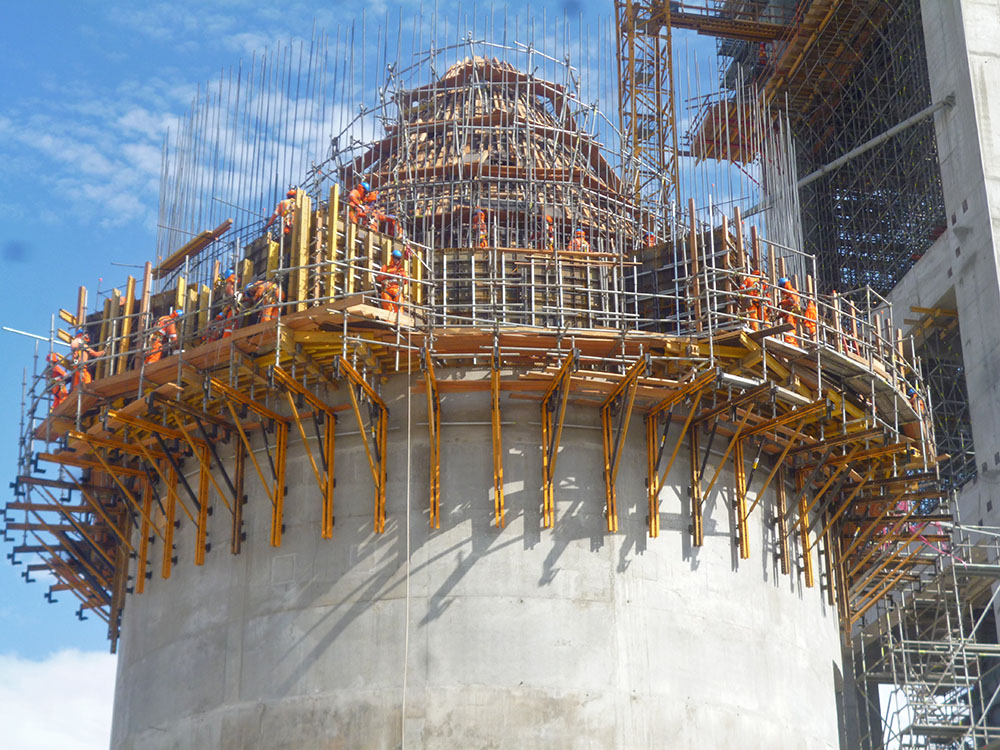

  • Completely adaptable even to inclined and circular walls
  • Fully dismountable due to its independent walers joined with bolts. Minimum transport volume
