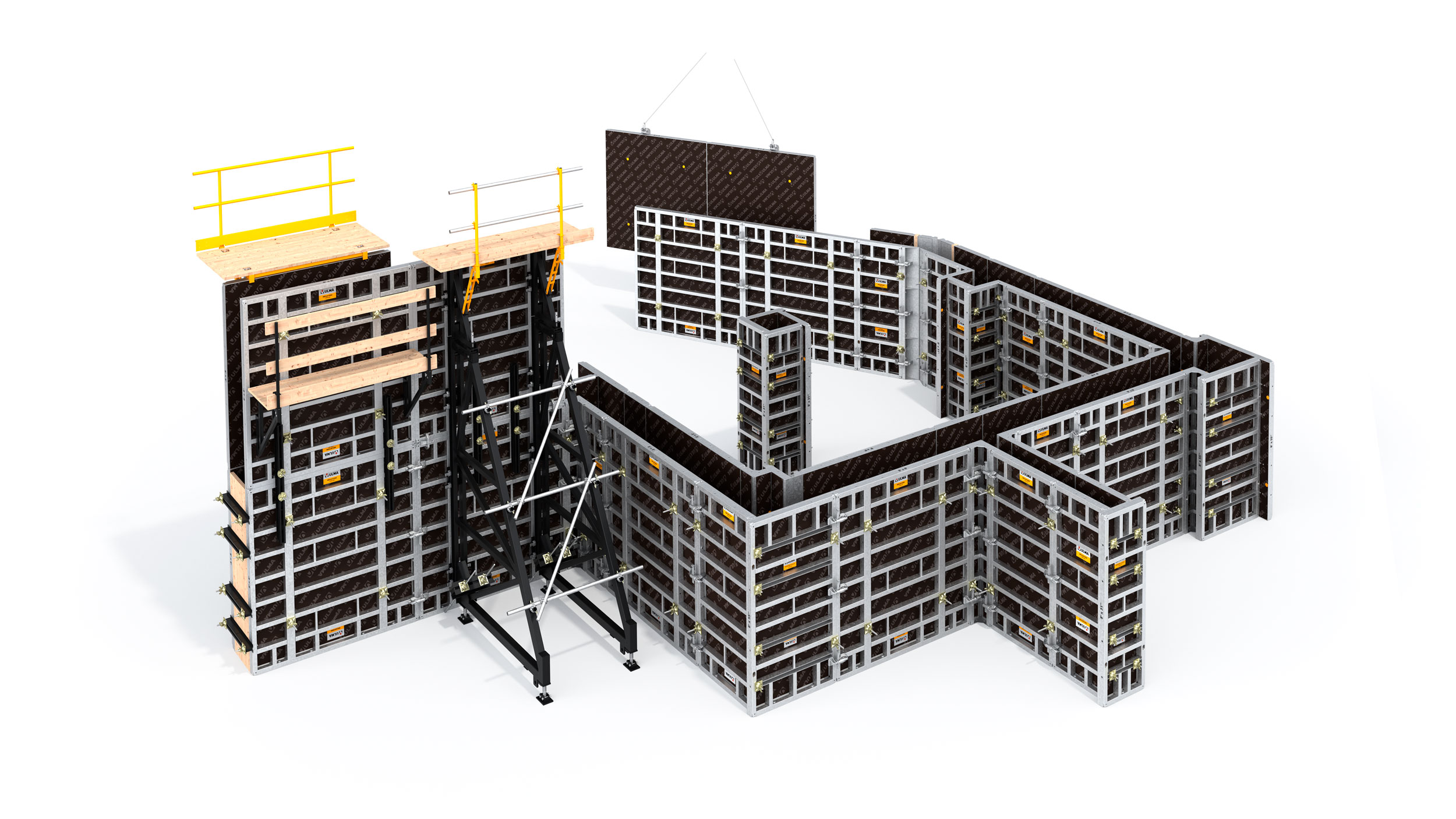

MEGAFORM is a modular wall and column formwork with dimensions in imperial measurements. It is the perfect formwork system for walls and columns for building construction and civil work.
- Designed in imperial measurements
- Permissible concrete pressure:
- Panels: 1650 psf
- Universal panel, concrete pressure: 1850 psf
- Panels can be combined, heights: h=10’, h=8’, h=4’ and h=2’
- Universal panel: widths of 55” and 31”
- Large panel 10’ x 8’ with 4 rows of anchors in height:
- hpouring ≤ 10’, with 2 rows of anchors
- hpouring > 10’, with 4 rows of anchors
- Panel 8’ x 8’ with 2 rows of anchors in height
- Universal panels, maximum column section: 48’’ x 48’’
- Panels with lateral holes that can be combined with universal panels and can thus offer solutions for all kinds of geometries
- Holes in ribs to tie accessories to
- High-quality phenolic plywood: excellent concrete finishing
- Erection of large MEGAFORM gangs. Lifting of these gangs with Mega Lifting Hook
- Indent for panel positioning and stripping
- Connections between panels with adjustable clamp. One hammer blow is enough. Fillers between panels of up to 4 inches are possible
The Chartwell at Marathon Village located in Nashville, Tennessee consists of approximately 4.5 acres and is located along Interstate 40 in the Germantown neighborhood.
Only five minutes from Downtown, the 282’ height superstructure composed of hotel and residences will be located on a highly populated corner of Broadway. 1812 Broadway will be an exquisite offer to visitors and locals.
The futuristic superstructure will have 365,000 sq ft of office space, including amenities such as an amenity deck, greenspace, tenant lounge, fitness center, conference center, and retail space.

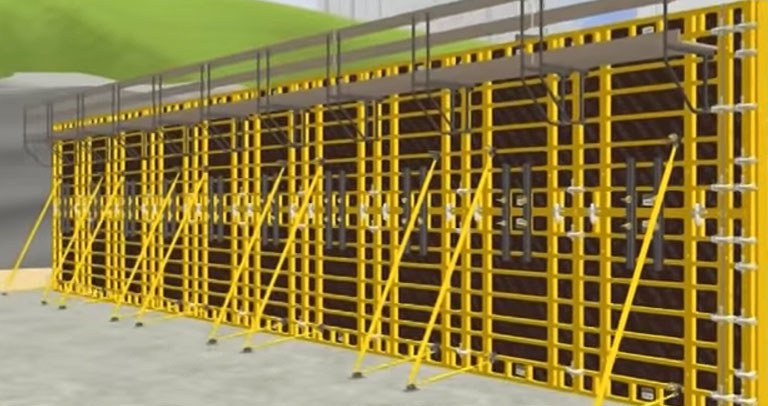

Single-sided forming systems for one-sided wall applications ranging between 8’ to 30’. Compatible with all ULMA wall formwork panels.
Crane free, self climbing system with multiple and versatile applications ideal for high speed construction on high rise projects.
Flexible rail-guided climbing formwork for forming cores, shear walls and perimeter walls using a hydraulic lifting mechanism
Crane-lifted climbing bracket, adaptable to inclined and curved walls with available platforms for added safety and cone recovery.
