Formwork Carriage for Mine Tunnels MK

Completely configurable form carrier, suitable for tunnels up to 3,280 ft. long. Extremely cost-effective system.
Completely configurable form carrier, suitable for tunnels up to 3,280 ft. long. Extremely cost-effective system.

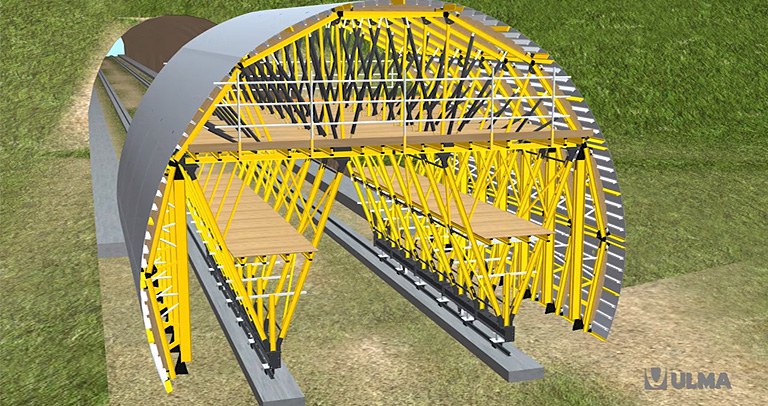

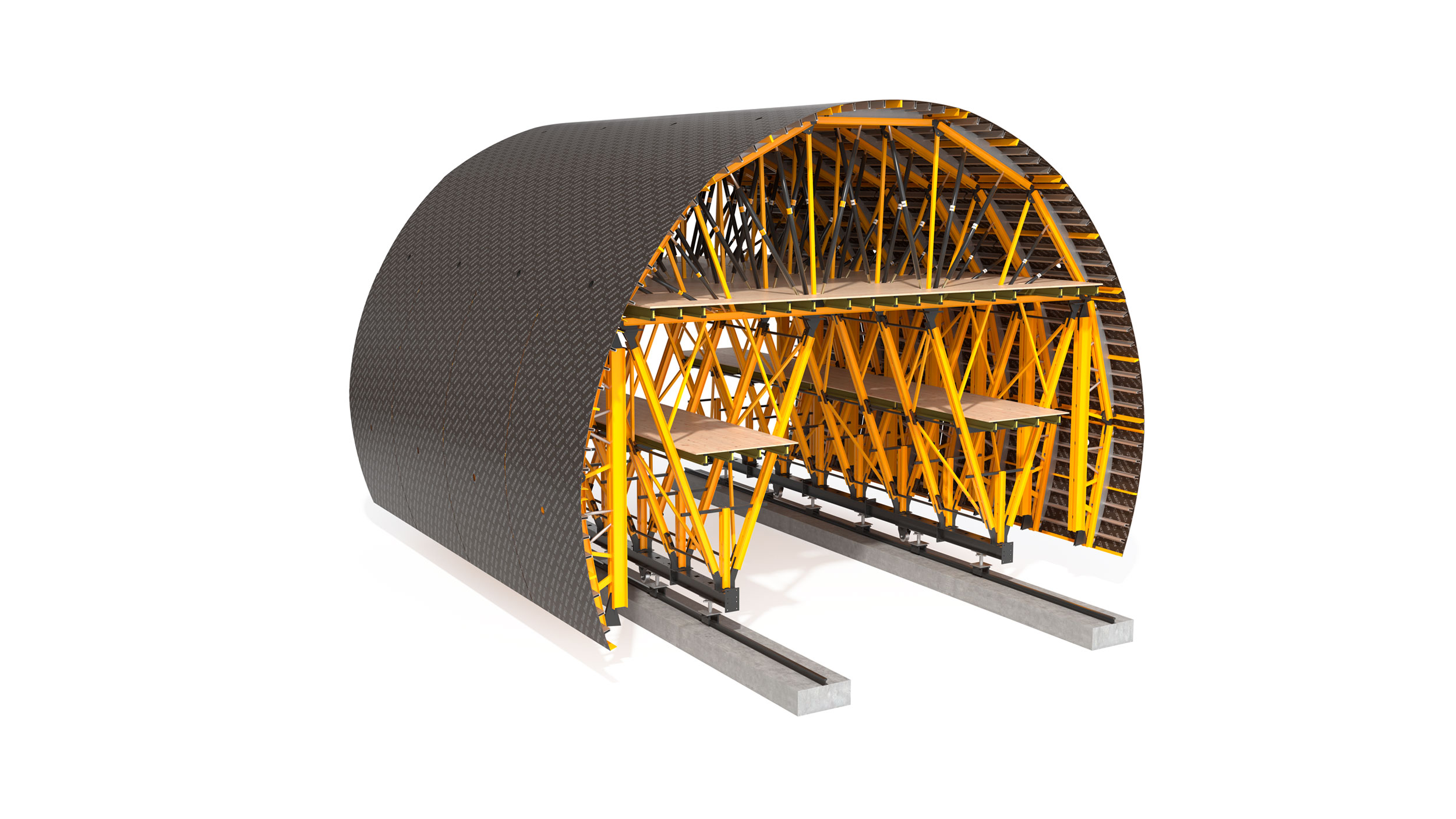

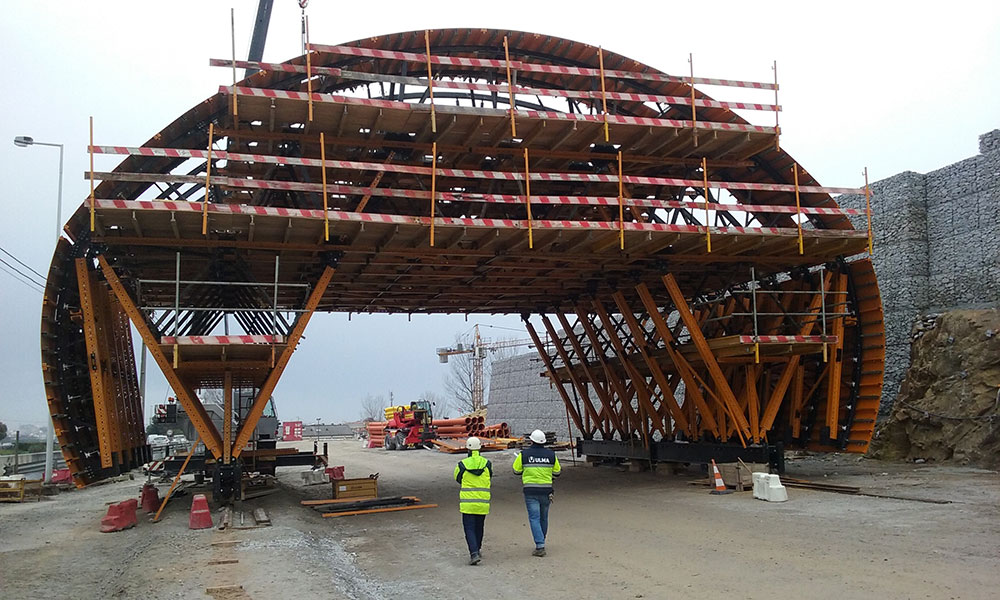

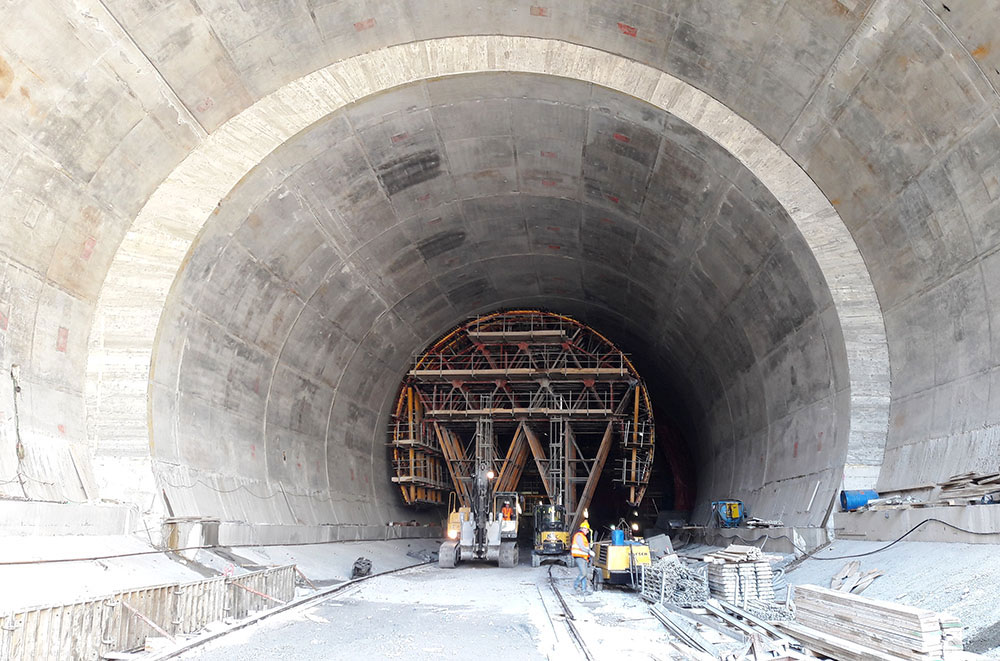

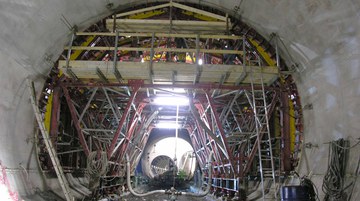

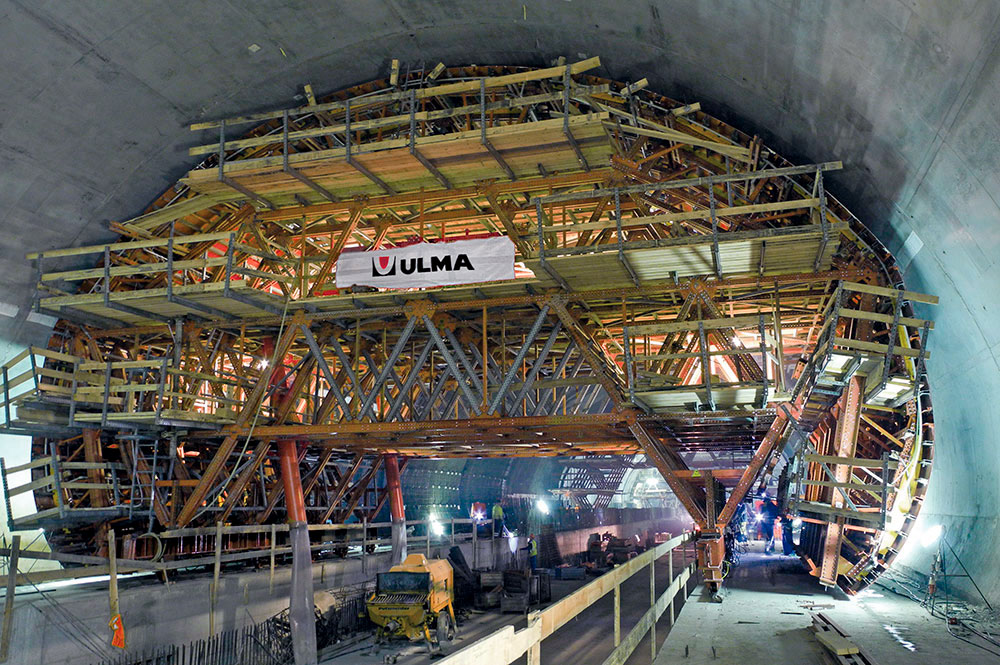

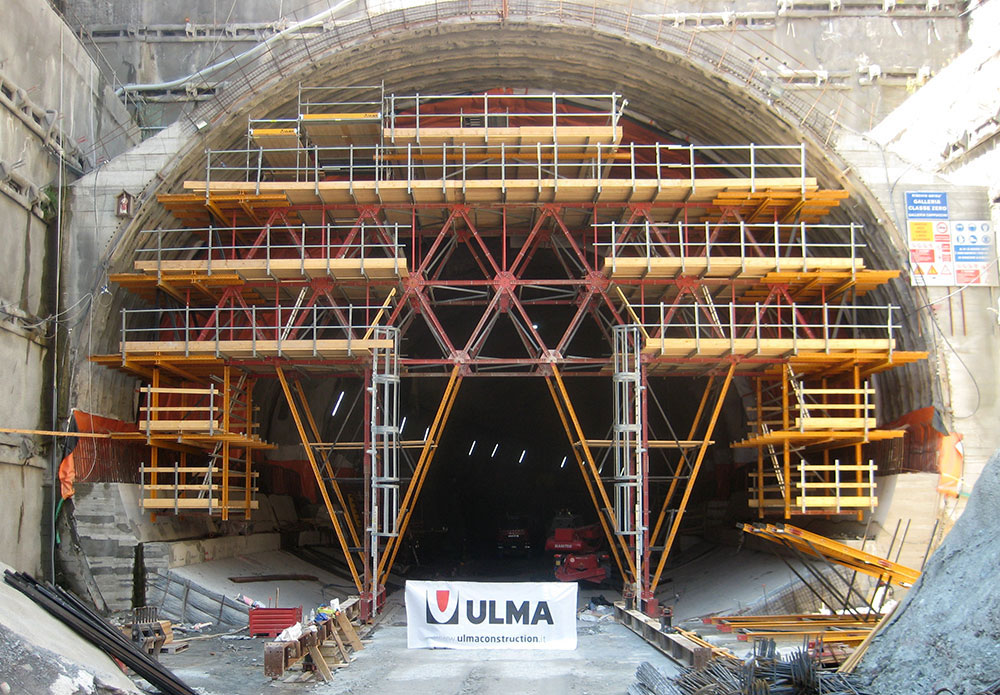

Lightweight mobile carriage combines shoring and formwork in one structure, which facilitates successive pouring in mine tunnels. An economical and cost-effective solution using a high proportion of standard rentable components. Based on the MK System, which uses a variety of multipurpose elements to create an extremely versatile structure with high load-bearing capacity. Built-in safety components, including working platforms and access systems.

  • Interior formwork for nozzle-poured concrete, vibrated from the exterior
  • With stands high pouring pressures
  • Forming face of 0.23in steel panels
  • Shaping timber for getting the required panel curvature
  • Manual or hydraulic advance
  • High Cost-Effectiveness
  • Made of standard rental material
  • Material reusable for other projects
  • Light weight structure
  • Quick work cycles
  • Easy handling
  • Carriages need not be dismantled for relocation
  • Configurable
    • Sections can be built in a variety of shapes
    • Structures configurable for different pressures and loads
    • Excellent concrete finishing
    • Steel panels adapt to different tunnel radii
    • Worksite access can be configured according to project requirements
    • Manual or hydraulic advance
    • Separate pouring of side wall and vault is possible
    • Distance between sections may be reduced to increase load-bearing capacity
    • Easy stripping with screw jacks or cylinders
    • Steel panels reusable for other tunnels
    • Panels with inspection windows and openings for pouring nozzles and vibrator support
    • Multi-level platforms and access systems
