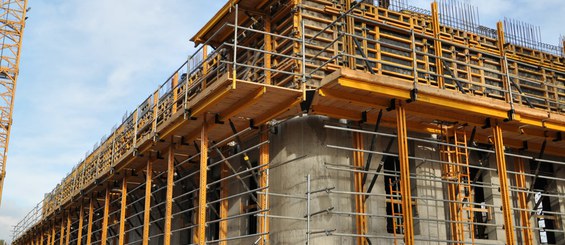

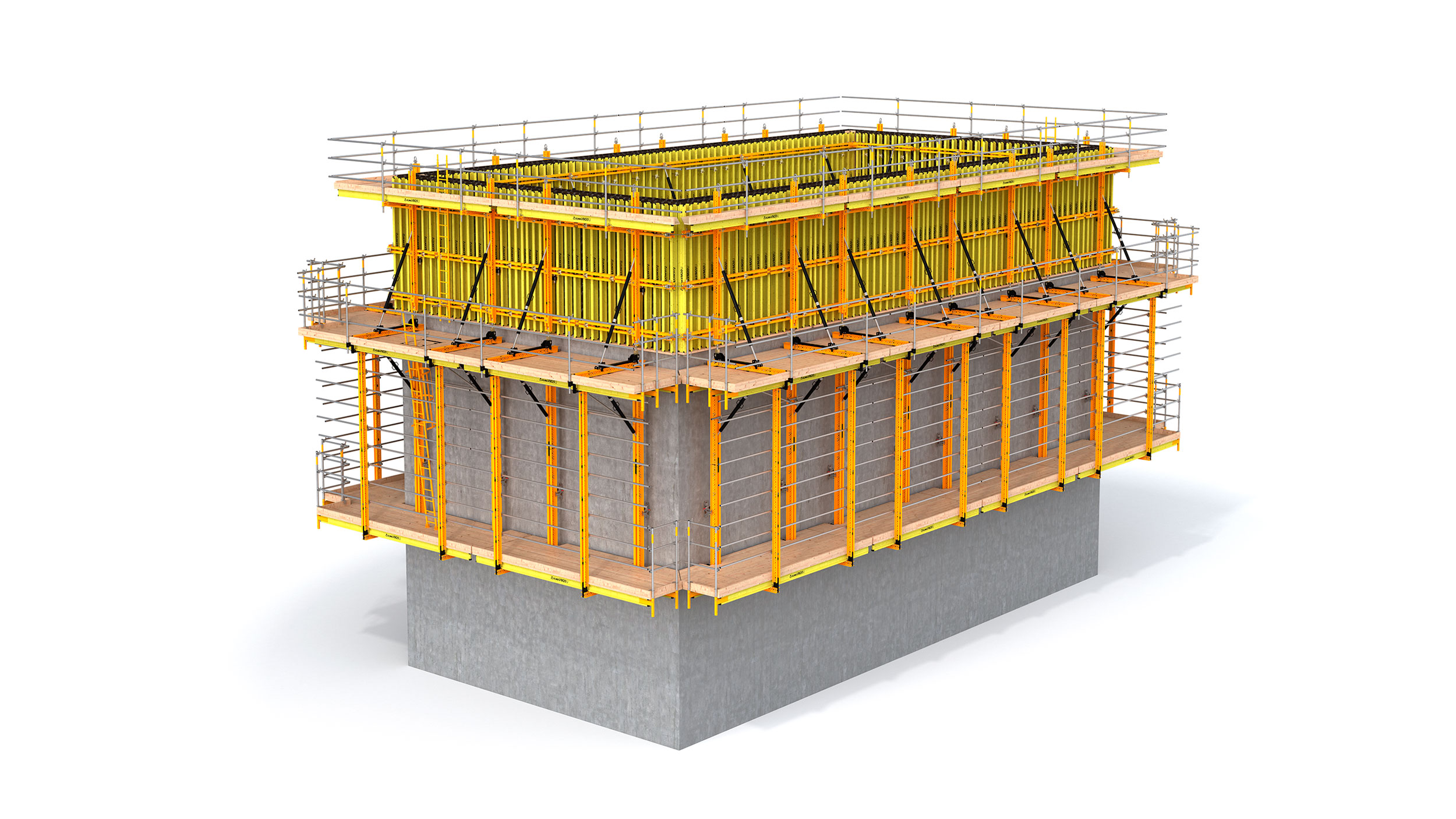

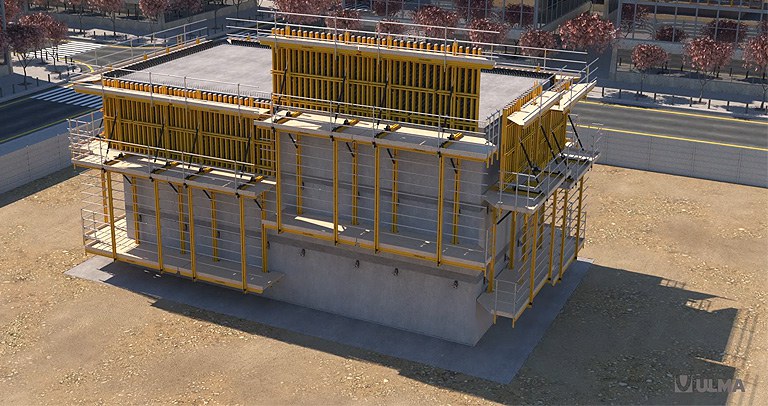

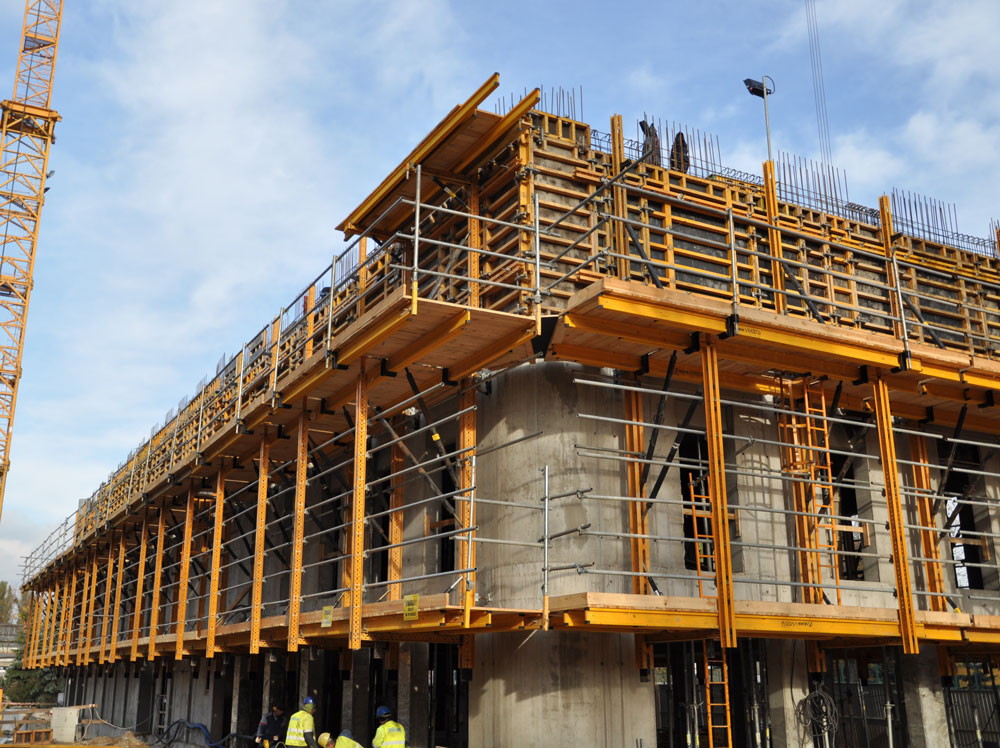

The RKS rail climbing system enables panel climbing without separating the structure from the wall. The guiding system makes the lifting operations safe under most weather conditions.
The lifting of the entire structure is done by crane with the option of incorporating a hydraulic system for lifting without a crane.
- Hydraulic lifting of the entire formwork structure and optional crane lifting
- Single lower platform for anchor recovery
- Adjustable to different pouring heights, with a standard range from 8ft – 10in and to 16ft - 5in
- Formwork roll-back distance: 2ft -3.5in
- Configuration optimized to obtain high levels of efficiency on-site
- Single-point rail anchors
- Safe climbing at height ensured by rails attached to wall
- Versatile and adaptable (based on the MK system)

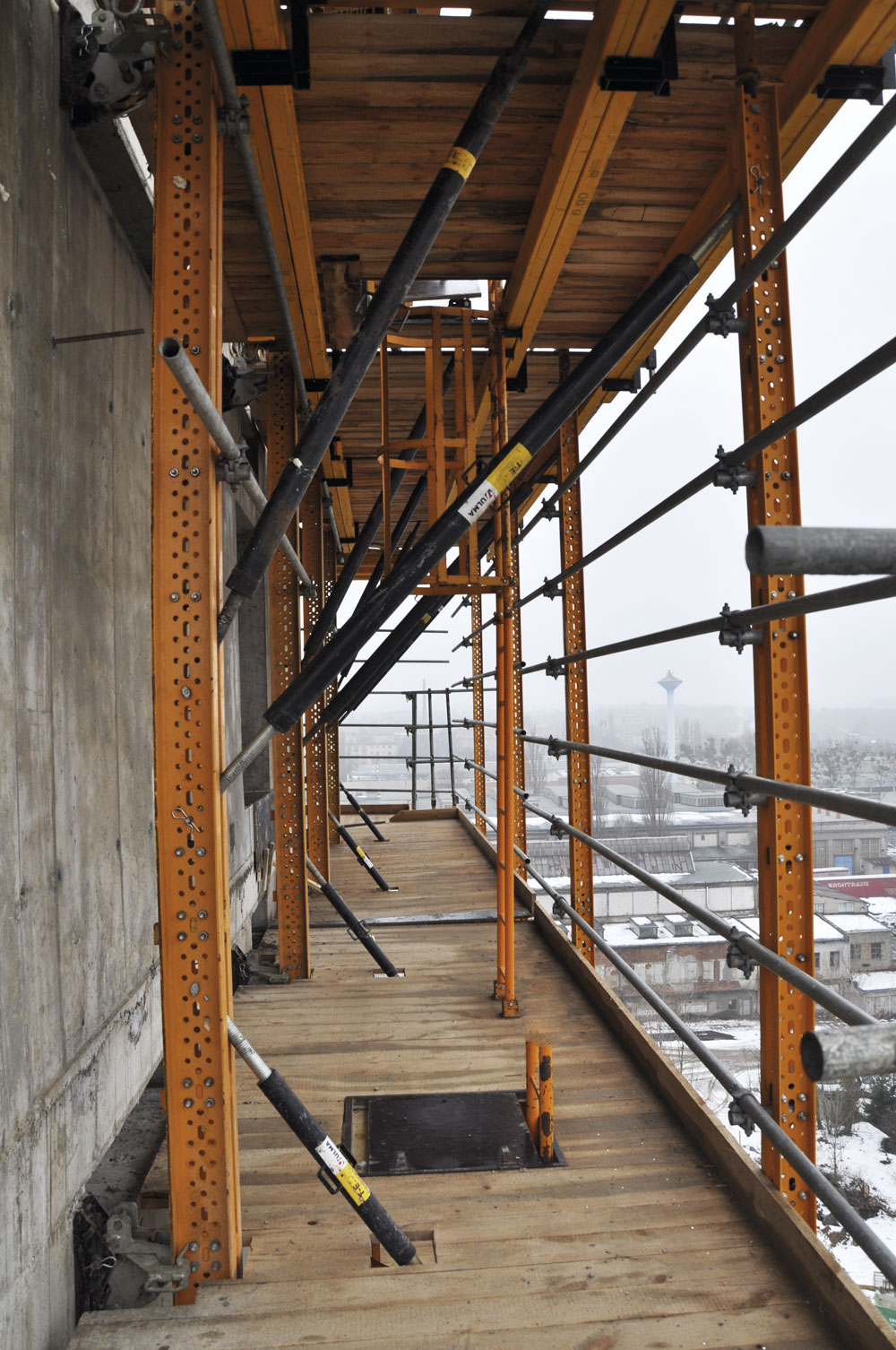

- Large and secure platforms, with customizable configurations
- Hydraulic lifting, without crane assistance
- Climbing assemblies lifted with a single hydraulic unit and two portable cylinders
Located in Dumbo, Brooklyn, Olympia is a 26-story, 270-foot-tall mixed-use residential structure that offers spectaculars views of the Brooklyn Bridge.
Rising above the city's financial heart, the tower will offer magnificent views of the skyscrapers. Residents and visitors will have a wide array of dining, entertainment, and fitness options available.
9 Dekalb Ave. is a 73-story-tower that rises 1,066 feet, becoming the tallest building in Brooklyn. The skyscraper is planned to have over 500 residential units, including commercial space.
Crane free, self climbing system with multiple and versatile applications ideal for high speed construction on high rise projects.
Perimeter Safety Screen adaptable to different geometries and configurations depending on project requirements. Designed for high-rise buildings.
Flexible rail-guided climbing formwork for forming cores, shear walls and perimeter walls using a hydraulic lifting mechanism
The ideal solution for fast and efficiently stripping formwork in interior spaces.
