VM-20 Beams

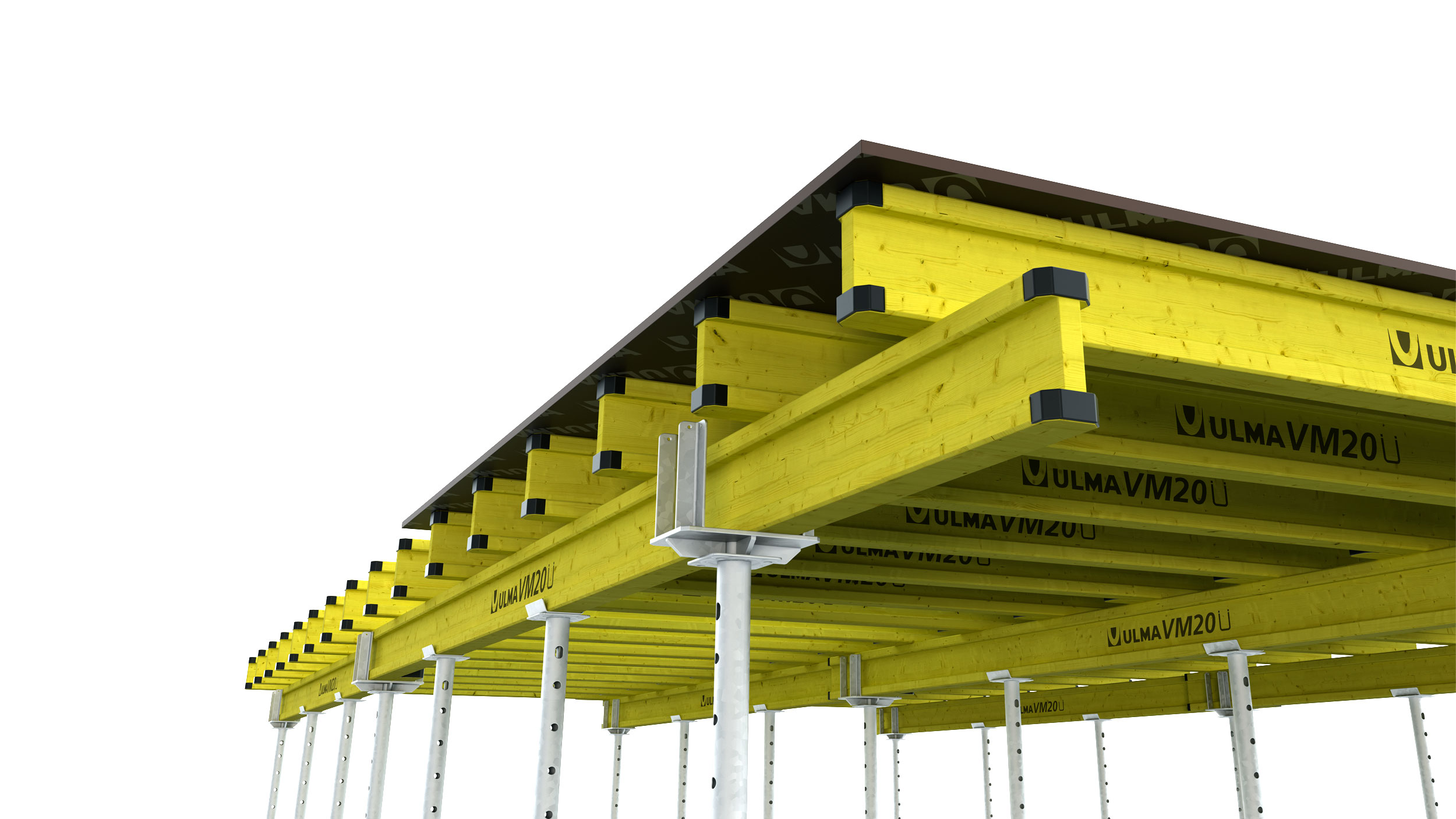

Double T-section timber beams for multiple formwork applications. Light and heavy duty, they resist strong impacts. Certified product.
Double T-section timber beams for multiple formwork applications. Light and heavy duty, they resist strong impacts. Certified product.

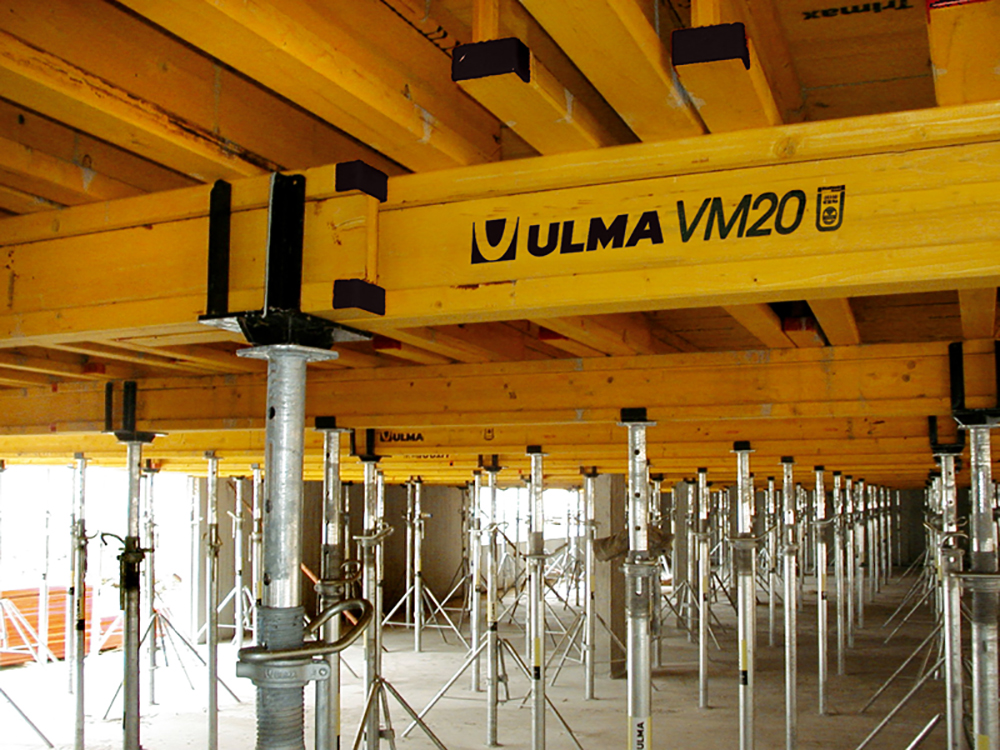

Their design and the material used guarantee a light and at the same time durable product, excellent as structural element for formwork.

  • Mechanical properties according to standard EN 13377:
  • Maximum permissible moment: 5 kNm
    • Permissible shear load: 11 kN
    • Stiffness (Exl): 450 kNm2
  • Double T-section, height= 200 mm and width= 80 mm
  • Protected ends to withstand impact
  • Product Certificates:
    • Certified according to the European standard EN 13377 of prefabricated timber formwork beams
    • PEFC: Chain of custody
