Tilt-back Climbing Bracket BF-170

Crane-lifted climbing system, perfect for the construction of double-sided walls and piers.
Crane-lifted climbing system, perfect for the construction of double-sided walls and piers.

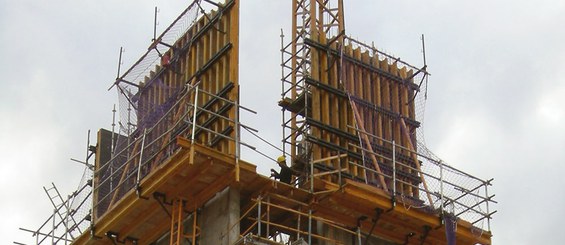

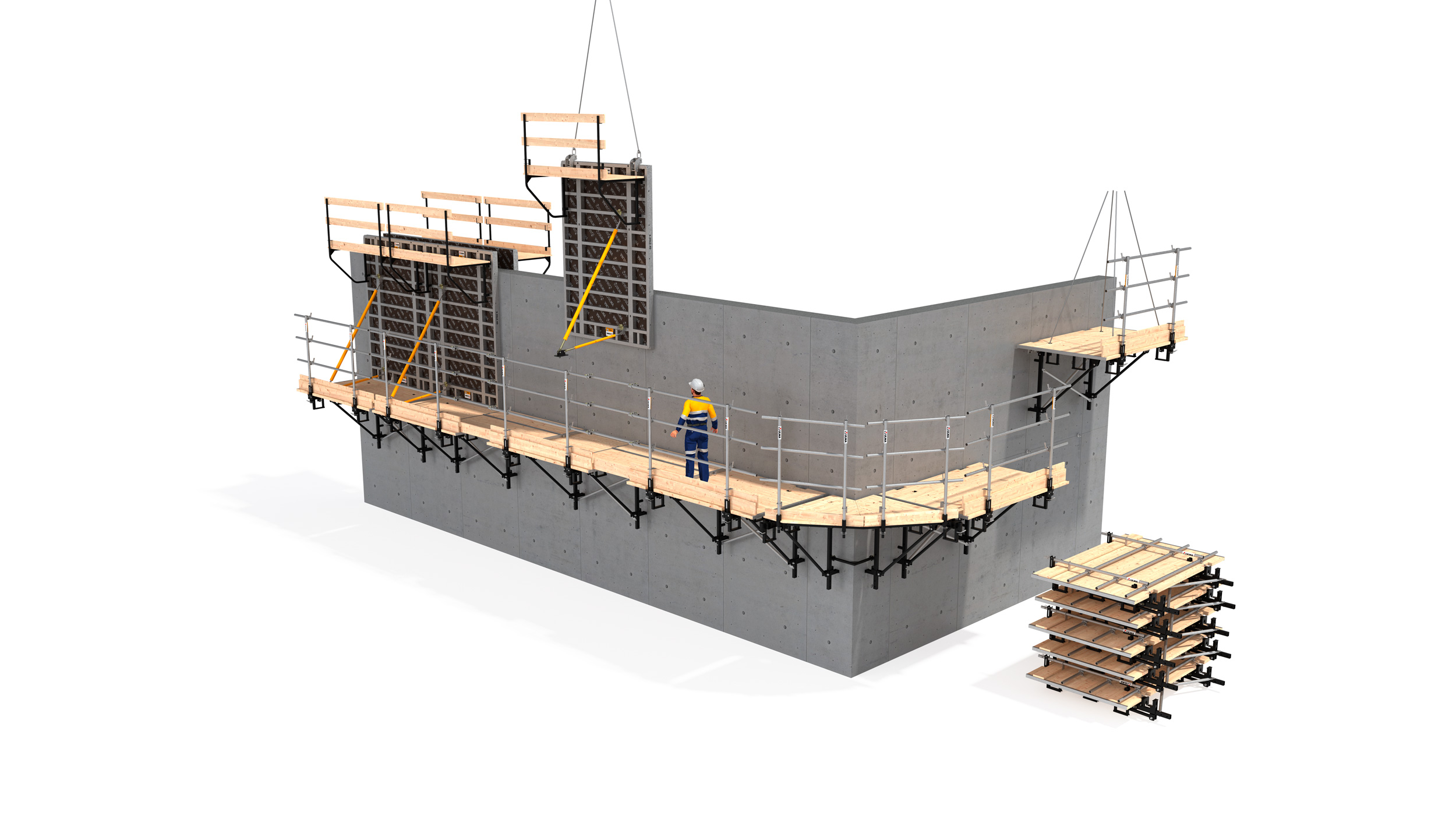

The BF-170 formwork system is mainly used for the construction of double-sided walls and piers. It is supported on anchor cones embedded in the concrete wall from a previous pouring stage.

The BF-170 climbing bracket only allows of a small stripping distance necessary to remove the formwork panel. This makes it suitable for outside climbing of building walls while the inside formwork is supported on the previously built slabs and, also, climbing at both sides by combining these brackets with conventional ones with roll-back carriages.

  • Suitable for any type of building construction
  • Platform width: 170 cm
  • 20 m2 formwork surface per pair of climbing brackets
  • Anchorage to wall: AWF, DW15
  • Roll-back carriage for formwork panel stripping
  • BF-170 with sockets for handrail and supports for beams for working platform
  • Easy installation of auxiliary and assembly platforms from of the main platform
  • It can be used with perimeter working platforms
  • It can be folded and dismantled
