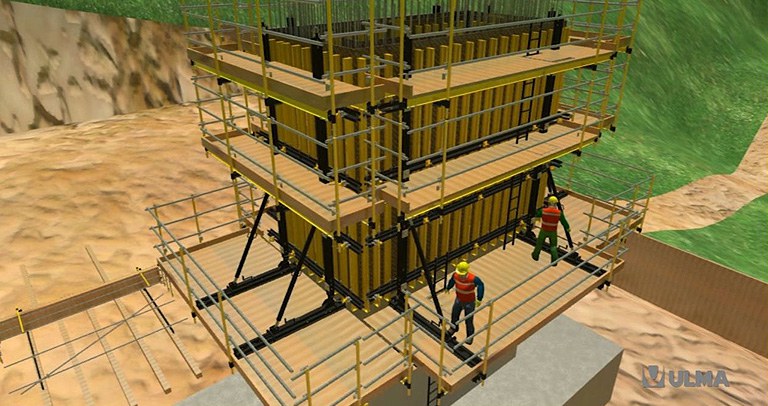

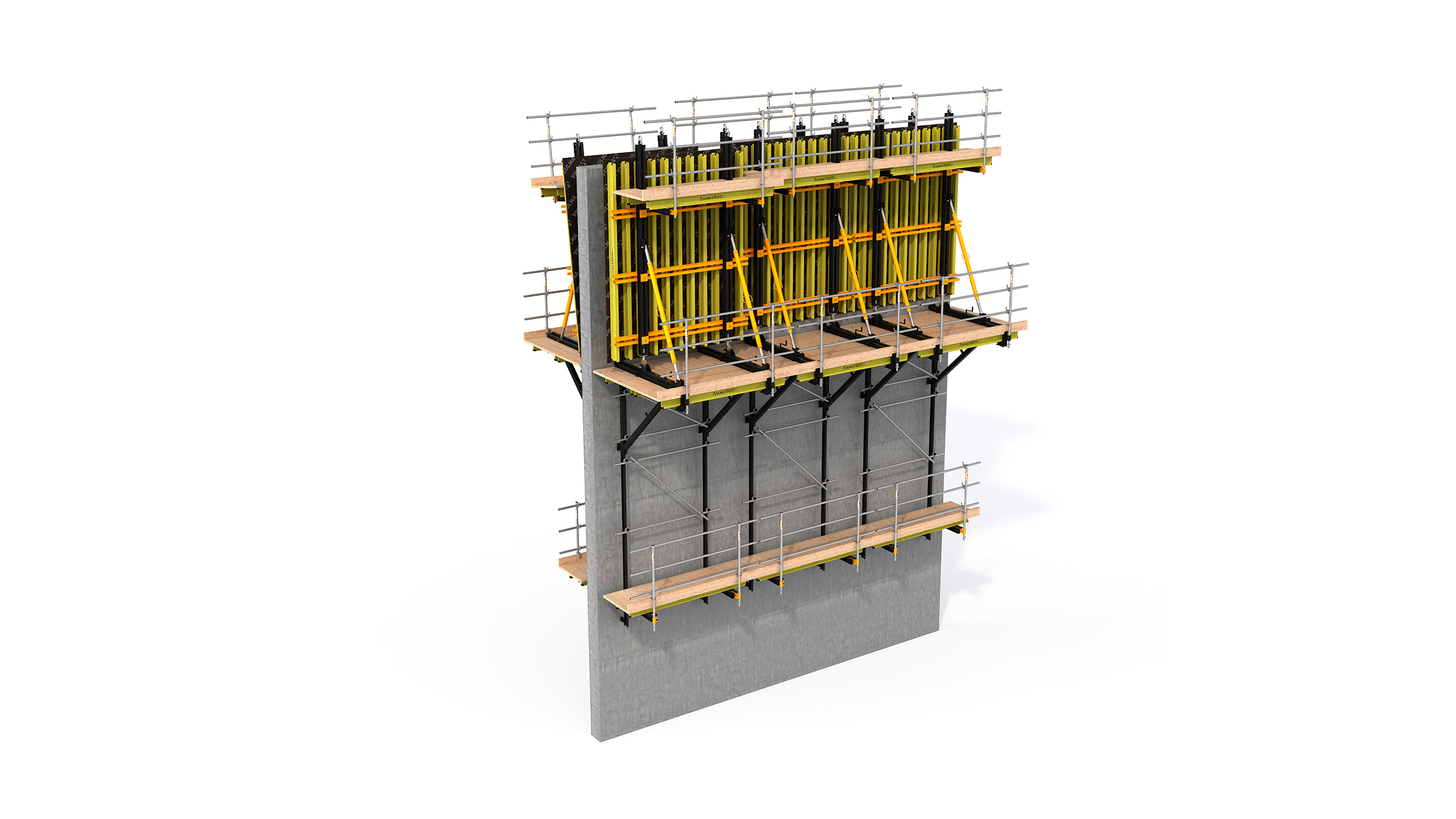

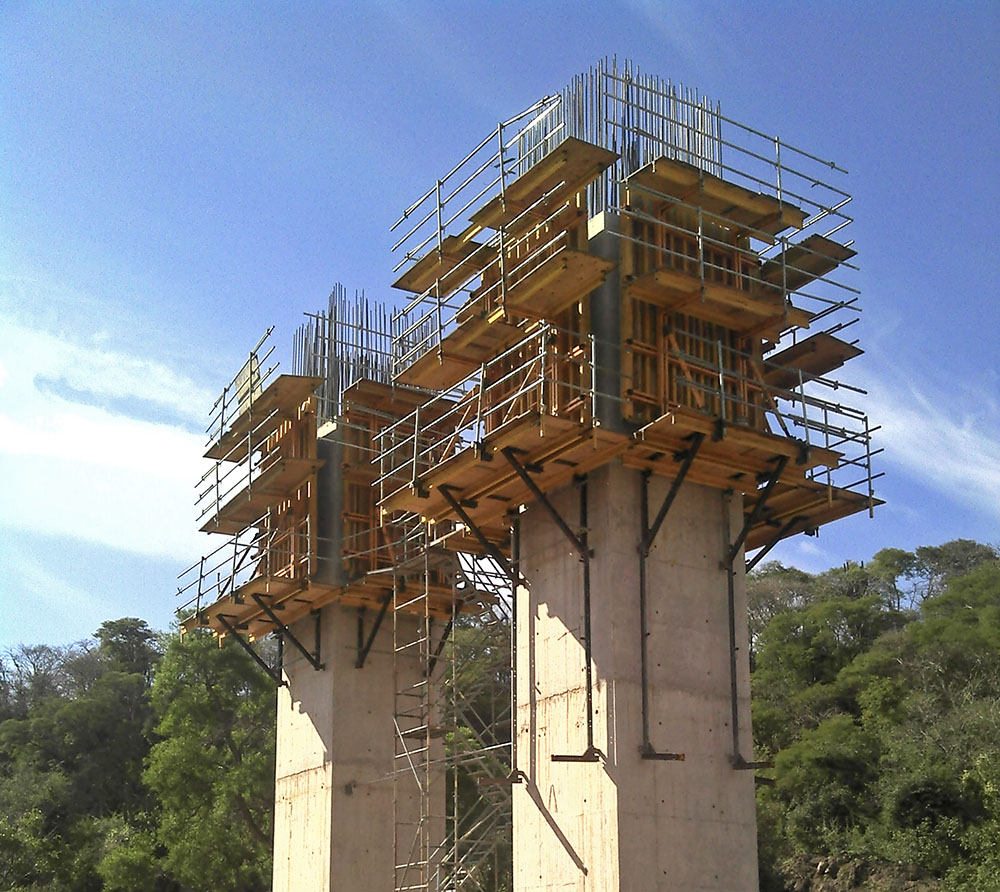

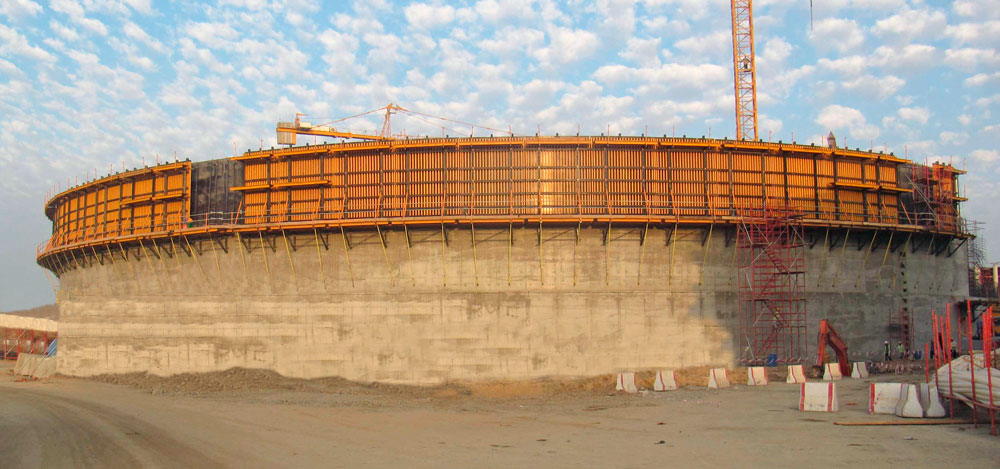

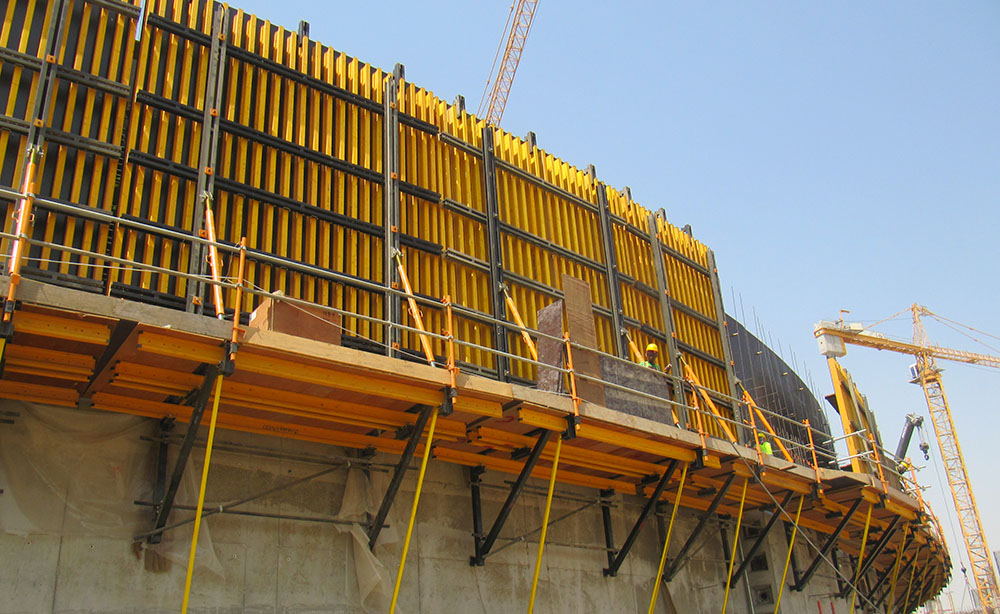

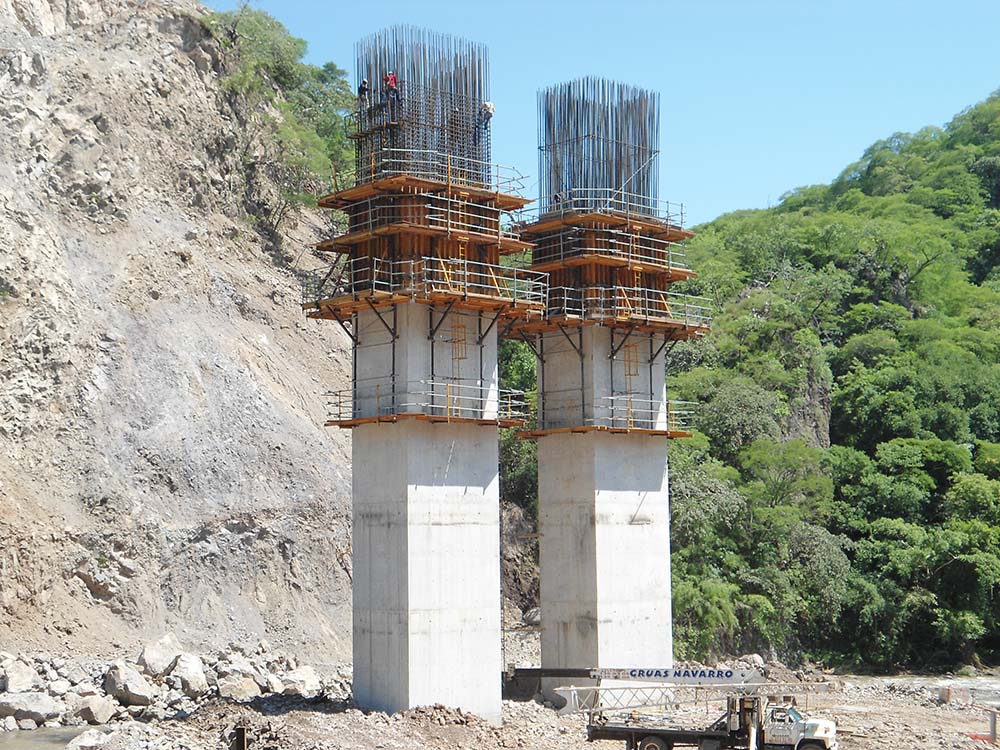

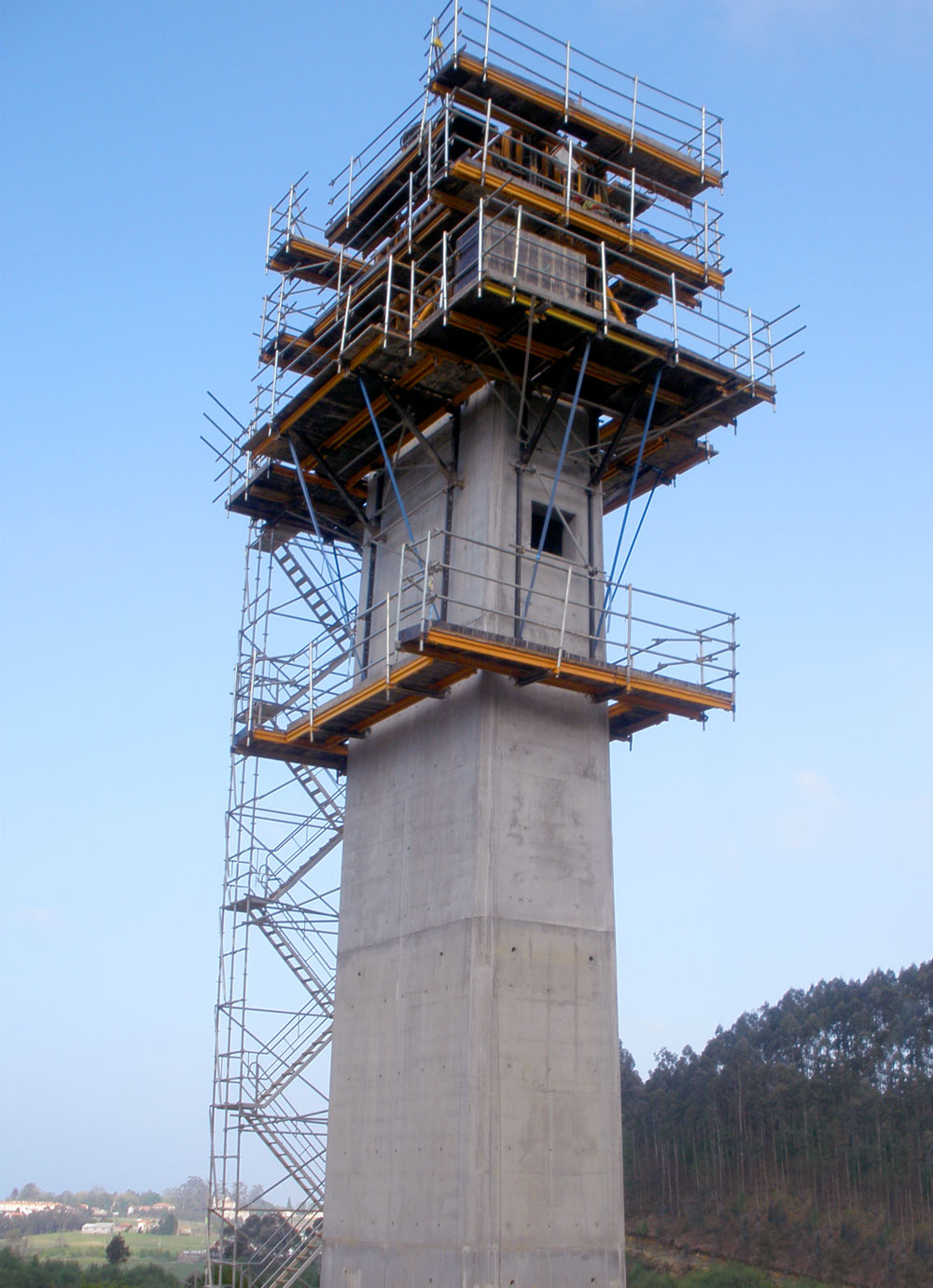

The CR-250 roll back climbing bracket system has been designed for large formwork units. It is primarily used for the pouring of double-sided walls (piers, walls, etc.). The brackets are supported on anchor cones, which were embedded in the concrete in previous pouring stages.
Product certified by SIGMA KARLSRUHE
- Application: civil works and building construction
- Platform width: 250 cm
- Up to 35 m2 formwork surface per pair of climbing brackets
- Anchorage to wall: DW20 (DW15 possible)
- Formwork stripping distance: 80 cm with roll-back carriage; 5 cm with tilt-back system
- Formwork height adjustment with leveling screw jacks without releasing the clamps between formwork and vertical waler
- Capable of supporting large formwork units
- Easy handling of the formwork bracket assembly
- Safe, ample working platforms: Working platforms have sufficient space to do all necessary tasks in the jobsite and provide high level of safety in all situations
- Can be combined with different ULMA formwork systems: ORMA modular formwork, ENKOFORM V-100 and ENKOFORM VMK formwork, among others
- Climbing brackets have roll-back or tilt-back system incorporated
- It can be adapted to any geometrical shape

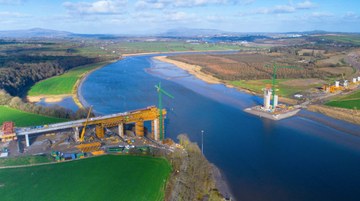

The bridge over the Barrow River, is an extradosed structure 887 m in length, making it the longest bridge of its kind in the world.

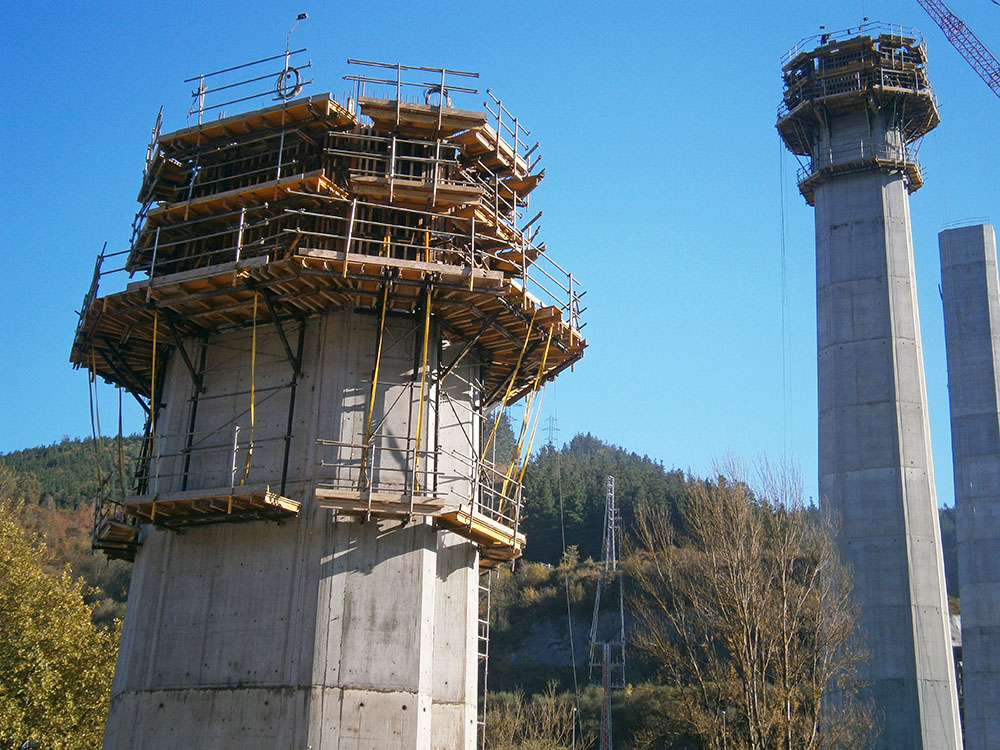

The versatility of our formwork structures provided a solution both profitable for our client and efficient for the construction of the octagonal piers required.
